Test channel: 0 to 40 channels
test time for each channel:＞ 500ms
Input (AC):
Frequency range: 45Hz～5KHz
Voltage range: 10V～1000V
Current range: 0.005A～20A
Power range: 0.5W～20000W
Power test accuracy: ±(0.25% RD+0.25% FS+1 digit)
Power factor test range: 0.000～＋1.000
Power factor test accuracy: ±(0.1% RD+0.1% FS+1
digit)
Output (DC): measuring lamp voltage, lamp current and lamp
power
Voltage range: 1V～300V
Current range: 1mA～3A
Voltage test accuracy: ±0.015% RD+0.05% FS
Current test accuracy: ±0.05% RD+0.1% FS
Power range: 0.1W～300W
Power test accuracy: ±0.2% RD+0.2% FS+1
Efficiency range: 0～100
Efficiency accuracy: ±0.5%
All the input and ouput electric pamarameters can be preset
for upper and lower limit

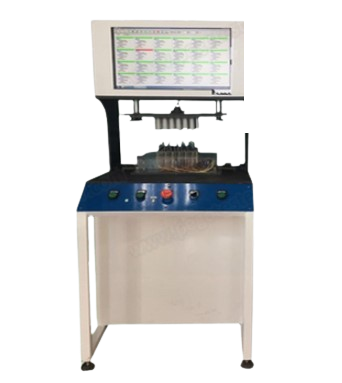

LED driver online ok tester is a professional equipment to online inspect if the LED driver is qualified or not, equip with special fixture and intelligent software can test the input and output characters of 40 channels of LED driver, and user can preset the upper and lower limit value to make judgement at real time. Auto set up and save EXCEL data base for analysis purpose.
