Outer size: 500mm*550mm*600mm (L*W*H)
Inner size: Φ270mm*300mm
Wall thickness: 15mm
Jar Material: acrylic
Flange thickness: 20mm
Flange material: Stainless steel
Weight: 40KG
Pressure control mode: auto
Pressure error: ±0.002 Mpa
Sensor display accuracy: 0.001Mpa
Test water depth: 0-30m
Pressure adjustment range: 0.01MPa-0.3MPa
Safety valve exhaust pressure: 0.35MPa
Pressure hold time: 0-999min
Protection device: Leakage switch protection, mechanical
safety valve protection
Working Power: AC220V/50Hz (single phase), 100W
Working condition
Temperature: 5℃~35℃
Relative humidity: ≤85%
Pressure: 86kPa~106kPa
Test water: Tap water or pure water
Air source: The air compressor is provided by the user, and
the recommended output air pressure: 0.6Mpa—0.8Mpa. Install the female quick
connector

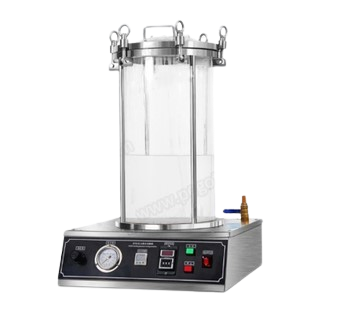

IPX8 High Pressure Transparent Water Tank can meet the requirement of IEC60529 for IPX8 testing and IEC60598. The pressure in the jar can be precisely automatically controlled in purpose of checking the tightness and the leak points (by observe the bubbling during the test).The equipment is mainly consisted by transparent Sealed jar and control unit.
