Withstand voltage test
Output voltage
AC
Output range: AC:0.050-5.000KV
Waveform: Sine-wave
Distortion: <3%
Operating Frequency: 50Hz/60Hz
Frequency Accuracy: ±1%
Output Power: 1000VA (5.000KV, 20mA)
Voltage Regulation: ±(1.0%+50V)
DC
Output range: DC:0.050~6.000KV
Signal source frequency: 600Hz
Output power: 600VA (6.000KV, 10mA)
Voltage regulation: ±(1.0%+100V)
Voltage resolution: 1V
Voltage output accuracy: ±(1.0% setting+5V) (no-load)
Accuracy: ±(2%SV+5V)
Test current range
AC
Test range: 0.001mA-20mA
Short-circuit current: >40mA (Set output voltage>500V)
Current resolution: 0.001mA
Current accuracy: ±(2.0% reading+5digit)
actual current: OFF 0.001mA-20mA
DC
Test range: 0.1μA-20.00mA
Current accuracy: ±(2.0% reading+5digit)
Discharge function: Automatic discharge after the test is
over
Insulation resistance test
Output voltage: 0.050KV-2.500KV
Voltage resolution: 1V
Voltage accuracy: ±(1.0% reading+2V)
Maximum output current: 10mA
Maximum output power: 25VA (2500V/10mA)
Output instantaneous short-circuit current: >20mA (set
output voltage>500V)
Load regulation: ≤1% (rated power)
Ripple (1KV): ≤3% (1KV, no-load)
Discharge function: Automatic discharge after the test is
over
Test resistance: 0.1MΩ-10GΩ
Resistance display range
10mA: 0.1MΩ-0.5MΩ
2mA: 0.5MΩ-5MΩ
200μA: 5MΩ-50MΩ
20μA: 50MΩ-500MΩ
2μA: 500MΩ-10GΩ
Resistance measurement accuracy
≥500V
1MΩ-1GΩ±(5%reading+5digit)
1GΩ-10GΩ±(10%reading+5digit)
<500V
0.1MΩ-1GΩ±(10%reading+5digit)
1GΩ-10GΩ
Current measurement accuracy: ±(1.5% reading+5 digit)
Arc detection: OFF class 1-9
Current upper limit: 0.001mA-20mA(AC), 0.1μA-10mA(DC)
Current lower limit: 0.001mA-20mA(AC), 0.1μA-10mA(DC)
Resistance upper limit: OFF, 0.1MΩ-10GΩ
Resistance lower limit: 0.1MΩ-10GΩ
discriminant output: LCD display PASS/FAIL, sound alarming
Voltage sag time: 0s-999.9s
Voltage holding time: 0.3s-999.9s (for DC withstand voltage
test only)
Accuracy of timer: ±(0.2% setting value±0.1s)
Storage and interface
20 test files, each file can have 20 test steps
USB host (support 128g max.)
Control interface: HANDLER, SINGAL
Protocol: SCPI, Modbus RTU
Communication Interface: RS232C, LAN
Accessories: Test fixutres, HV probe, fuse, power cable
Working Power: 220V, 50Hz/60Hz
Dimension: L283mm*D432*H108mm
Weight: 13KG

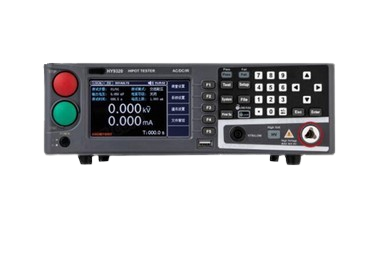

HY9320 withstand voltage and insulation resistance tester is a 2 in 1 equipment, it can perform both withstand voltage test and insulation resistance test. Those are the basic electric safety tests widely used in the fields of household appliance. transformer, electric equipment, components and etc.. The tester has the features of small volume, nice appearance and simpler operation.
