Output voltage
Contact discharge:
Air discharge:
Holding time: >5s
Polarity of output voltage: Positive, negative,
positive/negative auto
Trigger mode: Single,counting,20pps,other
Discharge interval: 0.05~99.99s
Numbers of discharge: 1~9999
Energy storage capacitance: 150pF ±10％(replaceable)
Discharge resistor: 330Ω ±10％（replaceable)
Waveform of contact discharge: Meet the standards of EN/IEC
61000-4-2，GB/T
17626.2
Rising time: 0.8ns ±25％
Environment: Temperature:15°C－35°C;Humidity:10%－75%
Power supply: AC220±10％，50/60Hz，300W
Dimension: 260mm(W)×170mm(H)×360mm(D)
Weight: About 5kg

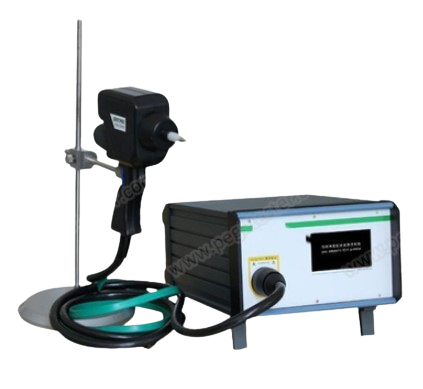

The electrostatic discharge generator is designed to meet the requirements of IEC61000-4-2 for electrostatic discharge immunity test. This equipment consists of charging resistor, enery storage capacitor, disctributed capacitance, discharge resistor, voltage indicator, discharge switch, interchangeable of the discharge electrodes, discharge return cabe and power supply unit. The energy storage capacitance is 150pF which simulates human body capacitance; the discharge resistance is 330Ω which simulates human body resistance.
Model ESD-2000Q configures LCD touch screen, user can define the test procedure or select IEC test procedures directly.
