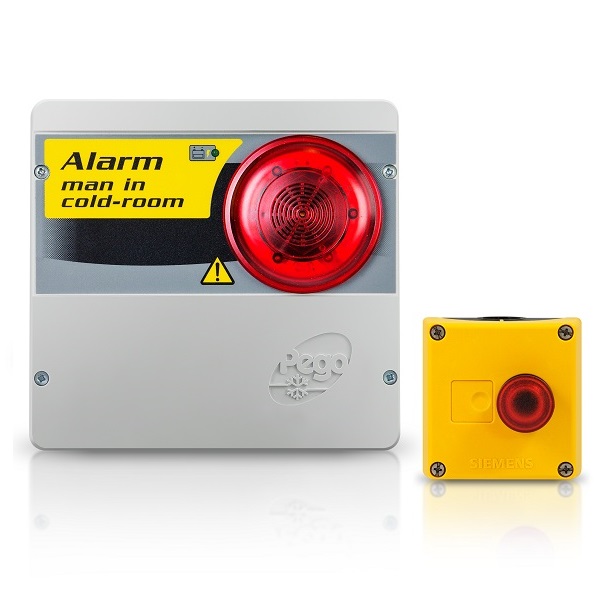

PEGO 100APE03 Alarm Man in Cold Room
Manufacturer: PEGO Model: 100APE03 - Contact
Dimension:
Control unit: 203x193x79 mm
Pushbutton: 85x85x85 mm
Weight: 2 Kg
Main power supply: 230 V AC 50/60 Hz
Max consuption on main power supply: 20 mA
Buffer battery: 12 VD C Ni-MH 1300 mAh
Complete recharge time: 110 h
Autonomy
With 230 V AC power off (operation with charged buffer battery: about 14h)
With 230 V AC power on: unlimited
External module: IP 43 protection rating
Working temperature: -5 ÷ +45°C
Acoustic characteristics
Type: piezoelectric
Sound power: 90 dB at 1m
Visual warning: Red flashing led 12 VDC
In-room emergency pushbutton
In-room emergency pushbutton red flashing LED 12 Vdc
NC contact
Keyboard with IP 65 protection rating
Operating temperature: -25 ÷ +70 °C
Auxiliary relay: 8A AC1 (SPDT)
