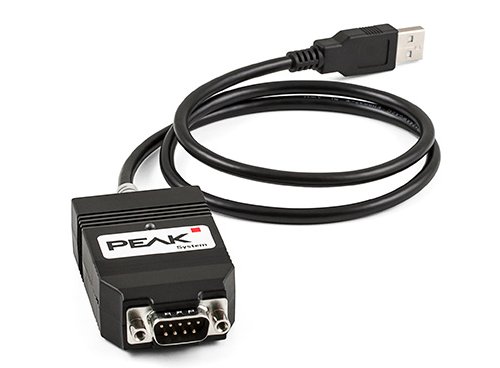

Peak System IPEH-004022 CAN and CAN FD Interface for High-Speed USB 2.0
ManufacturerPeak System(View more products from this manufacturer)
ModelIPEH-004022
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
- Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0)
- High-speed CAN connection (ISO 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO standards switchable
- CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s up to 12 Mbit/s
- CAN bit rates from 25 kbit/s up to 1 Mbit/s
- Time stamp resolution 1 μs
- CAN bus connection via D-Sub, 9-pin
(in accordance with CiA® 303-1) - FPGA implementation of the CAN FD controller
- NXP TJA1044GT CAN transceiver
- Galvanic isolation up to 500 V
- CAN termination can be activated through a solder jumper
- Measurement of bus load including error frames and overload frames on the physical bus
