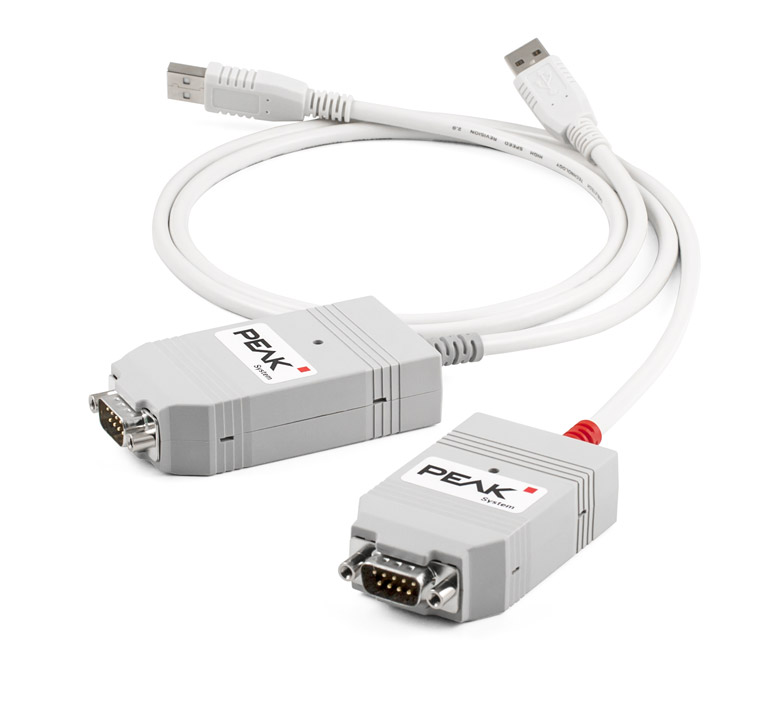

Peak System IPEH-002022 PCAN-USB

Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)

High-speed CAN connection (ISO 11898-2)

Bit rates from 5 kbit/s up to 1 Mbit/s

Time stamp resolution approx. 42 µs

Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)

NXP SJA1000 CAN controller, 16 MHz clock frequency

NXP PCA82C251 CAN transceiver

Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)

CAN termination can be activated through a solder jumper

5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter

Voltage supply via USB

Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
