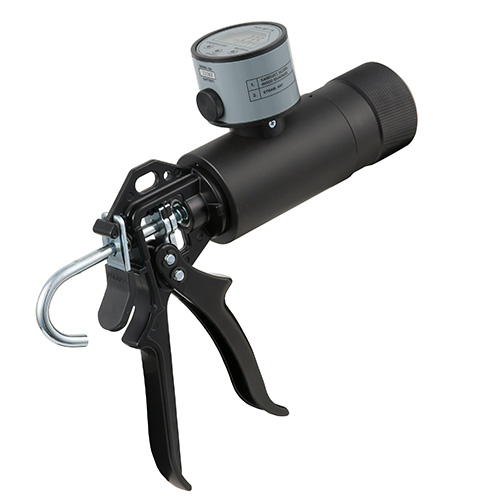

PCE WT1N Wood Moisture Meter (8-30%)

Specification

- Fast moisture determination

- Electrical resistivity method

- For biomass such as straw, hay, sawdust, etc.

- Sample size up to 120 cm ³

- Easy and fast operation

- Robust construction with over-pressure protection

- Battery

- With carrying case

Technical specification

Measuring range humidity meter wood chip

Sawdust, wood chips *

Straw, hay

8 ... 30%

8 ... 25%

General information about the Sawdust Moisture Meter

Resolution: 0,1 %

Accuracy

Calculated from 10 % of total reading

Example: At 15% = ±1.5%

Volume of the measurement chamber: 120 cm³

Sample size for wood chips

* max. 20 x 15 x 15 mm

Pressure during the measurement: about 0,2 MPa

Temperature compensation: digitally adjustable

Display: 3-digit LCD

Power supply: 12V, Battery Typ 23A

Operating temperature range: 0 ... +50 °C

Dimensions: 300 x 220 x 65 mm

Weight: 990 g

Delivery contents

1 x wood moisture meter PCE WT1N

1 x battery

1 x carrying case, instructions
