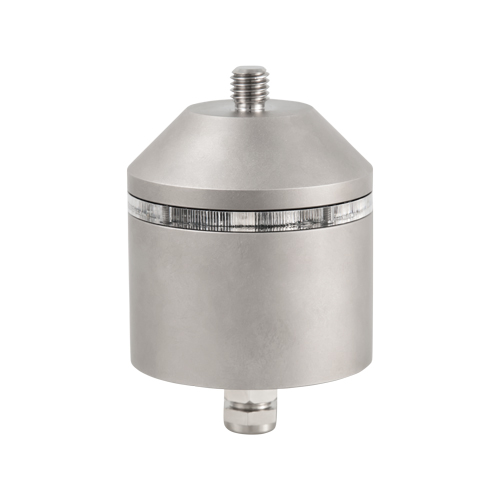

PCE VS12 Condition Monitoring Vibration Sensor Switch (0.1 Hz~10 kHz)

Specifications

Measuring range: 0.1 ... 1000 m/s² acceleration

Frequency dependent velocity: 2 ... 1000 or 20 ... 10,000 Hz / 360 lines frequency domain

Monitoring values:

Peak value of vibration acceleration or vibration velocity

RMS value of vibration acceleration or vibration velocity

Frequency domain (FFT)

High pass filter:0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration

2 / 5 / 10 / 20 / 50 Hz velocity

Low pass filter:0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration

1 kHz velocity

FFT limits: 10 freely selectable frequency intervals with limit amplitudes

Relay output:PhotoMOS relay; SPST

Max. 60 V / 0.5 A (AC/DC)

Open/close programmable

Connection via 8-pin female connector 711

Teach-in function Warning / alarm:

Button for measuring the switching threshold; No

Interfaces:USB 2.0 full speed for parameterization and measurement

CDC mode / virtual COM port

8-pin female connector 711

External USB port: Yes

Power supply voltage:

5 ... 30 V DC

5 V DC USB

< 100 mA screw terminals

Ingress protection:IP67 rating

Operating temp. range:-40 ... +80 °C / -40 ... +176 °F

Approx. weight125 g / 0.28 lb

Approx. dimensions50 mm / 1.97" Ø

36 mm / 1.42" height

Mounting:M8 thread pin; 8 mm / ≈ 0.32" length; 25 mm / ≈ 0.99" Ø coupling surface

Dilivery Contents

1 x PCE-VS12 condition monitoring vibration sensor switch

1 x USB cable

1 x PC-compatible software

1 x user manual
