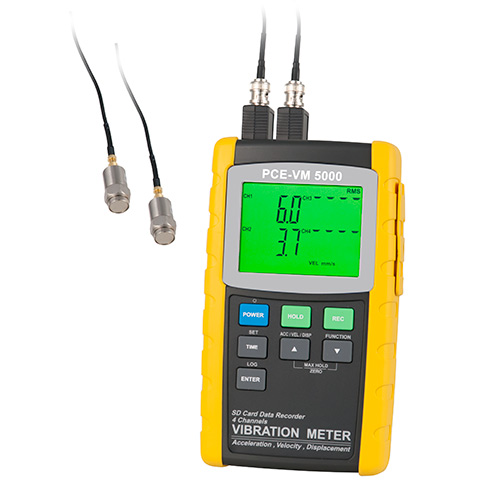

PCE VM 5000 Condition Monitoring Vibration Meter

Specifications

Display:82 mm x 61 mm / 3.22 in x 2.4 in ("), LCD display with background lights

Number of channels:4 input channels

Measuring types:speed, acceleration, expansion

Units:acceleration: m/s², g, ft/s²

speed: mm/s, sm/s, inches/s

expansion: mm, inches

Frequency ranges:10 Hz ... 1 KHz

Zero-function:Keypress activation for acceleration (rms) measurement

Datalogger Scan Rate:Automatic: 1 ... 3600 seconds

Manual: by pressing key

Memory Card:SD Memory card (1 ... 16 GB)

Data Hold Function:Holds Indicated Value

Audio Output:

Mini-Stereo Plug,

max. voltage: 2 V

output resistance: 100 Ohm

Operation Temperature:0 ... +50 °C / 32 ... 122 °F

Operation Humidity:85% R.H. max.

Power Supply:8 x 1.5 V AA batteries or 9 V AC adapter

Power Consumption:NiMH Rechargeable battery 3 x 2700 mAh

Operation / Charging time:

Standard Operation: approx. 12 mA dc

Without background lights and switched off data logger: approx. 35 mA dc

Weight:Meter: 515 g / 1.1 lbs

Dilivery Contents

1 x 4-channel PCE-VM 5000 Vibration Meter

2 x Sensors with cable and magnet foot

1 x SD card

8 x 1.5 V AA batteries

1 x Instruction manual

1 x Transportation case
