PCE VM 3D Vibration Meter (0.1~400.0 m/s²)

Specification

Measuring ranges

Vibration acceleration:

0.1 m/s² ... 400.0 m/s² (Peak)

0.3 ft/s² ... 1312.3 ft/s² (Peak)

(0 ... 40 g / 0.09 lb force)

Vibration velocity:

0.01 mm/s ... 400.0 mm/s

4.0 x 10-4 in/s ... 15.7 in/s

Vibration amplitude:

0.001 mm ... 4.000 mm (Peak-Peak)

4.0 x 10-5 in ... 0.16 in (Peak-Peak)

Range of Frequencies

Vibration velocity:10 Hz ... 10 kHz

Vibration acceleration:10 Hz ... 10 kHz

Vibration amplitude:10 Hz ... 10 kHz

Resolution:0.25 Hz

Accuracy:±5 %

Batteries:AA 1.5 V

Surrounding temperature:0 ... +50° C / 32° F ... 122° F

< 95 % rel. error

Dimensions:

130 mm x 70 mm x 30 mm

5.1 in x 2.8 in x 1.2 in

Weight:0.3 kg / 0.67 lbs

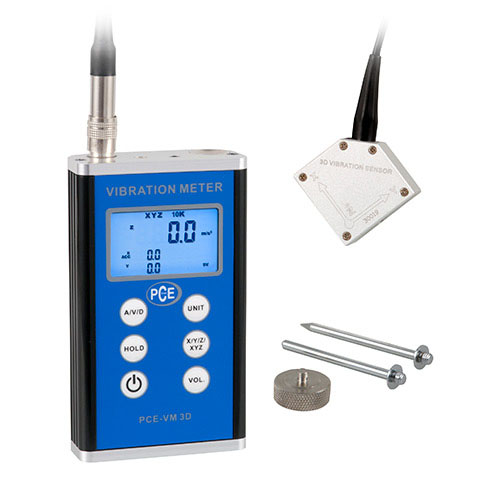

Delivery contents

1 x PCE-VM 3D Vibration Analyzer

1 x magnetic sensor

1 x external sensor with 1.5 m cable

2 x measuring tips

1 x instruction manual

1 x hard case
