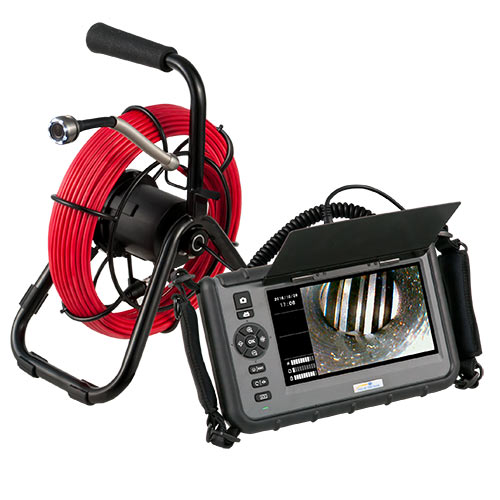

PCE VE 1030N Industrial Borescope

Specification

Cable diameter: 28 mm / 1.1 in

Cable length: 30 m / 98 ft

Depth of field: 10 mm … ∞ / 0.4 in to infinity

Field of view: 150.8°

Bending radius:90 mm / 3.54 in

Illumination:8 LEDs

Image sensor:CMOS / 640 x 480

Picture rate:30 / sec.

Display:7" LCD (800 x 480)

Image Resolution:640 x 480 JPEG

Video Recording:640 x 480 MPEG (with sound recording)

Drop test:1 m / 3.2 ft

Power Supply:Li-Ion battery

Interface:USB

Picture and Video Memory:To SD card (up to 32 GB)

AV Output:NTSC / PAL

Audio Input:built-in microphone

Brightness Setting:10-step adjustable on the main unit

Runtime per Battery Charge:5 hours

Charging Time Battery:3 hours

Charging Temperature:10 ... 40°C / 50 ... 104°F

Operating Temperature:0 ... 60°C / 32 ... 14°F

Storage Temperature:0 ... 60°C / 32 ... 140°F

Protection type, cameraIP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft

Delivery contents

1 x PCE-VE 1030N industrial borescope

1 x Semi-flexible waterproof push-pull cable on reel

1 x Centering star

1 x SD memory card

1 x USB cable

1 x Power adapter

1 x Video cable

1 x Carrying case

Manual
