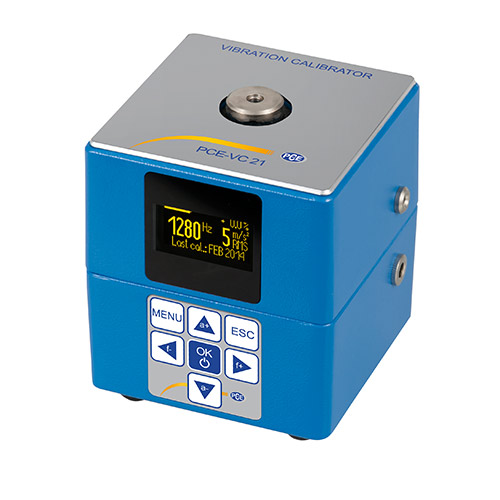

PCE VC21 Vibration Analyzer Calibrator

Specification

Frequency (Hz):15.92;40;80;159.2;320; 640; 1280

Acceleration RMS (m/s²): 1,2; 1,2,5; 1,2,5,10; 1,2,5,10,20; 1,2,5,10,20; 1,2,5,10,20; 1,2,5,10,20

Velocity RMS (mm/s): 10, 20;-;-; 1,2,5,10,20;-;-;-

Displacement RMS (µm): 100,200;-;-;1,2,5,10,20;-;-;-

Max. sensor weight (g), depending on acceleration

at 1 m/s²:-;500;500;500;500;500;500;500

at 2 m/s²:-;500;500;500; 500;500;500;500

at 5 m/s²:-;-;500;500;500;500;500;500

at 10 m/s²:600;-;-;500;500;500;400;200;

at 20 m/s²;-;-;-;-;250;200;100;50

Amplitude accuracy:

± 3 % (0 ... 40 °C / 32 ... 100 °F)

± 5 % (-10 ... 55 °C / 14 ... 130 °F)

Frequency accuracy:± 0.05 %

Settling time:< 10 seconds

Level indication:Error percentage (%) display, above ± 3 % audible alert

Max. weight of test object for stated accuracy:600 g / 1.32 lb

Dynamic force of vibration exciter:10 N

Max. tightening torque of vibration exciter:2 Nm

Operating humidity range:< 90 % at 30 °C / 86 °F, non-condensing

Power supply:Built-in NiMH rechargeable battery, 7.2 V / 1.6 Ah

Max. operating hours with rechargeable battery:Approx. 5 hours at a weight of 100 g / 0.22 lb

Charging time:Approx. 4 hours

Charging status:Bar indicator

Automatic power off:10 minutes / 1 ... 30 minutes adjustable

Stray magnetic field at the vibration head:< 0.2 mT

Dimensions (L x W x H):Approx. 100 x 100 x 120 mm / 3.9 x 3.9 x 4.7"

Weight:Approx. 2200 g / 4.9 lbs

Delivery contents

1 x PCE-VC21 vibration analyzer calibrator

1 x thread adapter (M3, M5, M8, 1/4"-28, UNF 10-32)

1 x battery-charging power adapter (100 ... 240 V AC; 50 / 60 Hz)

1 x factory calibration certificate

1 x user manual

1 x carrying case
