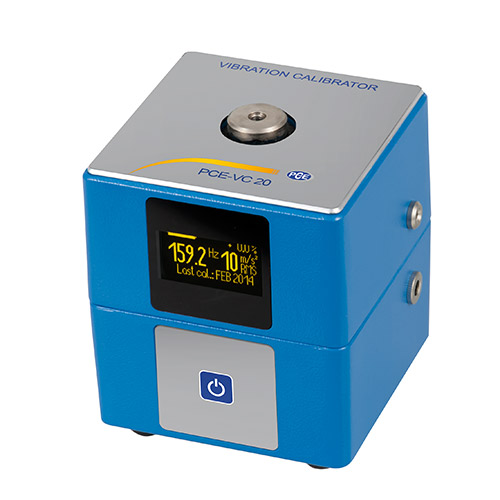

PCE VC20 Portable Shaker Vibration Calibrator

Specifications

Vibration magnitude: (RMS values ± accuracy)

Vibration acceleration:10 m/s² ± 3 % (0 ... 40 °C / 32 ... 100 °F)

Vibration velocity:10 mm/s ± 3 % (0 ... 40 °C / 32 ... 100 °F)

Vibration displacement:10 µm ± 3 % (0 ... 40 °C / 32 ... 100 °F)

Vibration frequency:159.15 Hz ± 0.05 % (-10 ... 55 °C / 14 ... 130 °F)

Radian frequency:1000/s ± 0.05 % (-10 ... 55 °C / 14 ... 130 °F)

Settling time:< 10 seconds

Dynamic force of vibration exciter:10 N

Max. tightening torque of vibration exciter:2 Nm

Operating humidity range:< 90 % at 30 °C / 86 °F, non-condensing

Power supply:Built-in NiMH rechargeable battery, 7.2 V / 1.6 Ah

Max. operating hours with rechargeable battery:Approx. 5 hours at a weight of 100 g / 0.22 lb

Charging time:Approx. 4 hours

Charging status:Bar indicator

Automatic power off:10 minutes / 1 ... 30 minutes adjustable

Stray magnetic field at the vibration head:< 0.2 mT

Dimensions (L x W x H):Approx. 100 x 100 x 120 mm / 3.9 x 3.9 x 4.7"

Weight:Approx. 2200 g / 4.9 lbs

Dilivery Contents

1 x PCE-VC20 portable shaker vibration calibrator

1 x thread adapter (M3, M5, M8, 1/4"-28, UNF 10-32)

1 x battery-charging power adapter (100 ... 240 V AC; 50 / 60 Hz)

1 x factory calibration certificate

1 x user manual

1 x carrying case
