Specifications
Measurement range:0.5 ... 9999 mm (longitudinal shaft steel), continuously adjustable
Sound velocity:1000 ... 15000 m/s, continuously adjustable, coarse adjustment
Display delay:-10 ... 2000 mm
Probe delay:0.00 ... 199.9 µs
Transmitting impulse:400 V negative signal peaks
Damping (impulse generator):50 / 100 / 200 / 500
Work mode:One- or two-probe measurement
Operating frequency range:0.5 ... 20 MHz
Pulse repetition frequency:40 / 250 /1000 Hz optional
Amplification / gain (receiver):0 ... 110 dB
Rectification (receiver):Whole wave, positive half wave, negative half wave, high frequency representation
Alarm limits:Limit A (Gate A) and Limit B (Gate B),
Adjustable as positive or negative peak with automatic (visual or audible) alarm
Measurement mode:Limit value / Extreme value mode
Measurement deviation horizontal linearity:≤0.1 %
Measurement deviation vertical linearity:≤3 %
Excess sensitivity:≥62 dB
Dynamic range:≥40 dB
Resolution remote field:≥30 dB
Sampling rate:400 MHz
Measurement data storage:500 records
Signal reproduction:Permanent recording of signals with the playback of dynamic echoes
Surface adjustment:Automatic adjustment of the error position of the angled probes
Automatic amplification:20 ... 80 %, in 1 % steps
Menu language:English, Chinese
Interface:USB-A, USB-B, Ethernet
Display:5.7 " TFT color LCD (640 x 480 pixels)
Operating temperature:-10 ... +50 °C
Power supply:AC: 100 ... 240 V
DC: 15 V / 4 A
BatteryLi-ion battery: (10.8 V, 5200 mAh)
Battery opearting time per charge:>6 hours
Protection class:IP54
Weight:1.4 kg (incl. battery)
Dilivery Contents

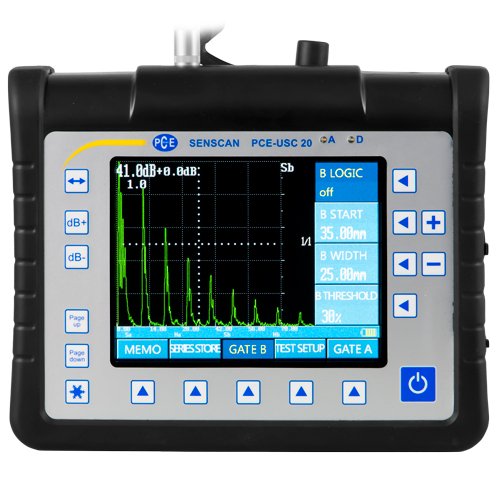

1 x PCE-USC 20 condition monitoring ultrasonic thickness gauge
1 x Li-ion battery
1 x charging adapter
2 x probe cables (1.8 m long)
1 x USB cable
1 x USB flash drive with software
1 x carrying bag with strap
1 x carrying case
1 x contact transducer probe (90 °)
1 x contact transducer probe (70 °)
1 x contact transducer probe (60 °)
1 x contact transducer probe (45 °)
1 x calibration certificate
1 x user manual
