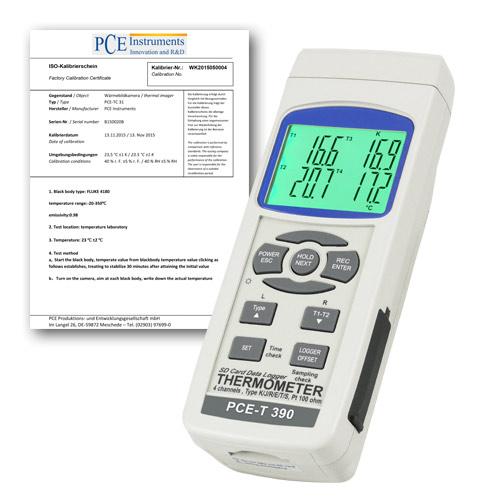

PCE T390-ICA Temperature Data Logger

Specification

Measuring range meter

Type K: -100 ... 1370°C / -148 ... 2498°F

Type J: -100 ... 1150°C / -148 ... 2102°F

Pt100: -200 ... 850°C / -328 ... 1562°F

Resolution:

TFype K: 0.1°C / 0.18°F (-100 ... 1000°C / -148 ... 1832°F); 1°C / 1.8°F (1000 ... 1370°C / 1832 ... 2498°F )

Type J: 0.1°C / 0.18°F (-100 ... 1000°C / -148 ... 1832°F); 1°C / 1.8°F (1000 ... 1150°C / 1832°F ... 2102°F)

Pt100: 0.1°C / 0.18°F (-200 ... 850°C / -328 ... 1562°F)

Accuracy (at 23°C / 73.4°F, ±5°C / 41°F):±(0.4% + 1°C / 1.8°F)

Sampling interval:1 ... 3600 seconds (adjustable)

Sensor inputs:4 x type K/J sensor inputs, 2 x Pt100 sensor inputs

Memory:SD card memory (1 ... 16 GB SD cards are supported)

PC software requirements (optional):Windows 95 or higher

Display:52 x 38 mm / 2 x 1.5 in LCD with backlight

Power supply:6 x 1.5V AA batteries; 9V mains adaptor (optional)

Auto power-off function:After 30 min of idle time

Environmental conditions:0 ... 50°C / 32 ... 122°F, < 85% RH

Dimensions:177 x 68 x 45 mm / 7 x 2.7 x 1.8 in

Weight:278 g / < 1 lb

Delivery contents

1 x Contact thermometer PCE-T390

2 x Type-K sensors TF-500

6 x 1.5V AA batteries

1 x SD memory card

1 x Instruction manual

1 x ISO calibration certificate
