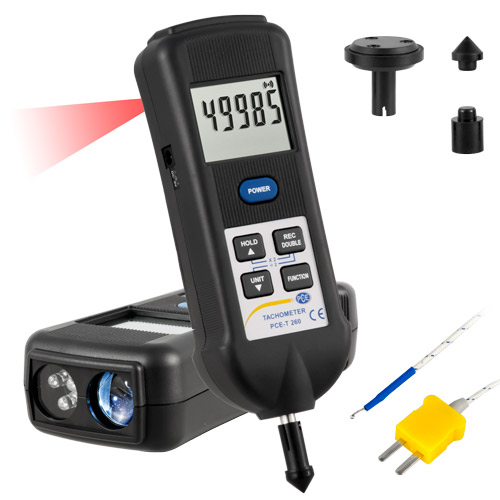

PCE T 260 Handheld Tachometer (5~99999 rpm, ±0.05%)

Specification

Technical Data of Tachometer Stroboscope PCE-T 260 Optical Tachometer

Measuring range:5 ... 99999 rpm

Resolution:0.5 rpm (< 1000 rpm) 1 rpm (>1000 rpm)

Accuracy :±0.05% + 1 Digit

Distance to the measuring object:50 ... 150 mm / 2 x 5.9 in, max. 300 mm / 12 in (depending on ambient light)

Technical Data of Tachometer Stroboscope PCE-T 260 Contact Tachometer

Measuring range:0.5 ... 19999 rpm

Resolution:0.5 rpm (< 1000 rpm)

1 rpm (>1000 rpm)

0.05 m/min (<100 m/min)

0.1 m/min (>100 m/min)

Accuracy :±0.05% + 1 Digit

Technical Data of Tachometer Stroboscope PCE-T 260 Stroboscope

Measuring range:100 ... 99990 FPM

Resolution:

0.1 FPM (< 1000 FPM)

1 FPM (1000 ... 30000 FPM)

5 FPM (30000 ... 50000 FPM)

1 FPM (50000 ... 99990 FPM)

Accuracy:±0.1% + 2 Digit

Flash lamp:3 x LED (red)

Technical Data of Tachometer Stroboscope PCE-T 260 Temperature Type K

Measuring range:-100 ... 1300°C / 148 ... 2372°F

Resolution:0.1°C

Accuracy (device only):

±0.4% + 1°C / 33°F (-100 ... -50°C / -148 ... -58°F)

±0.4% + 0.5°C / 32°F (-50 ... 1300°C / -148 ... 2372°F)

Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature PT 1000

Measuring range:-10 ... 70°C / 14 ... 158°F

Resolution:0.1°C / 32°F

Accuracy (device only):±1.2°C / 34°F

Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature IR

Measuring range:-30 ... 305°C / -22 ... 581°F

Resolution:0.5°C / 33°F

Accuracy :±3% or ±3°C / ±37°F

Emissivity0.95 fixed

Spectral range6 ... 14 µm

Optical resolution3:1

General Specifications of Tachometer Stroboscope PCE-T 260

Display:5 Digits LCD

Interface:RS 232

Power supply:4 x 1.5V AA (UM-3) / Power supply DC 9V

Power consumption:ca. 52-mA

Environmental conditions:0 ... 50 °C / 122°F < 80 % rH.

Memory:Last value, Min, Max

Dimensions:207 x 67 x 39 mm / 8.1 x 2.6 x 1.5 in

Weight:255 g / < 1 lb without batteries

Delivery contents

1 x Handheld Tachometer PCE-T 260

1 x Measuring adapter

2 x Measuring tip (internal and external cone)

1 x Measuring wheel

1 x Reflective tape (600 mm)

1 x Carrying case

1 x Instruction manual
