Manufacturer: PCE-ANH
Model : SLT
Warranty : 12 months
Specification
Sensor
Measuring range:
30 ... 130 dB in 3 ranges:
I. 30 ... 80 dB(A)
II. 50 ... 100 dB(A)
III. 80 ... 130 dB(A)
Resolution0.1 dB
Accuracy±1.5 dB
Frequency weighting: A
Power supply:Via transmitter
Cable length (sensor to transmitter):1.5 m / 4.92'
Operating conditions:0 ... +50 °C / +32 ... +122 °F, max. 85 % RH
Microphone:1/2" precision electret
Standard:IEC 61 672 (Class II)
Transmitter
Housing: ABS plastic
Power supply:90 ... 260 AC V
Calibration:Adjustable by set screw
Output:4 ... 20 mA
Protection class:IP 54 ingress protection rating
Operating conditions:0 ... +50 °C / +32 ... +122 °F, max. 85 % RH
Digital indicator
Transmitter input signal:4 – 20 mA
Indicator:- 1999 ... 9999 (1 ... 3 decimals, according to the measurement value / chosen by the user)
Programming data (decimals, limit value ..)Saved in the unit
Regulation output:3 points (Com, NO, NC)
Alarm output:Relay output: 5 A / 240 V AC
Power:90 ... 260 ACV / 50 ... 60 Hz
Dimensions / Switchboard according to DIN:92 (+ 0.8) mm x 45 (+ 0.5) mm
Weight:Approx. 250 g / 0.56 lb
Operating conditions:0 ... +50 °C / +32 ... +122 °F, max. 85 % RH
Protection class:IP 65 ingress protection rating
Delivery contents

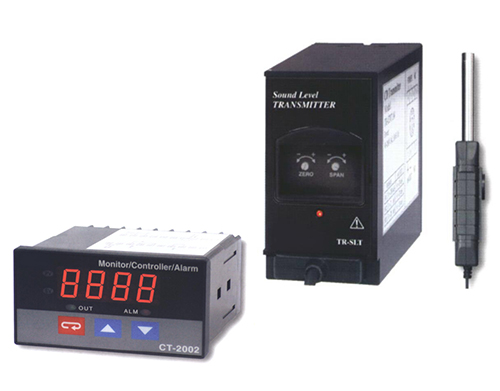

1 x SLT noise meter (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
1 x wall-mounting bracket for sensor
1 x digital indicator
1 x user manual
