Specification
Sound sensor
Measuring range:30 ... 130 dB in three areas
Resolution:0.1 dB
Accuracy:± 1.5 dB
Rating:A
Care:Via transmitter
Cable length:1.5 m / 4.9 ft
Wall mount:To screw on (included)
Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
Microphone:1/2" precision electret microphone
Standard:IEC 61672 class II
Transmitter
Casing:ABS plastic
Care:90 ... 260 AC V (max 1.5 A)
Calibration:Adjustable via grub screw
Exit:4 ... 20-mA
Protection:IP 54
Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
Digital display
Input signal from the transmitter:4 - 20-mA
Display:-1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / user-selectable)
Programming data (decimal place, limit value ...):Are stored in the device
Control output:3-point (Com, NO, NC)
Alarm output:Relay output: 5 A / 240V AC
Care:90 ... 260 AC V / 50 ... 60 Hz
Dimensions / panel cutout according to DIN:92 (+0.8) x 45 (+0.5) mm / 3.6 (+0.03) x 1.8 (+0.02) in
Weight:About 250 g / < 1 lb
Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
Protection:IP 65

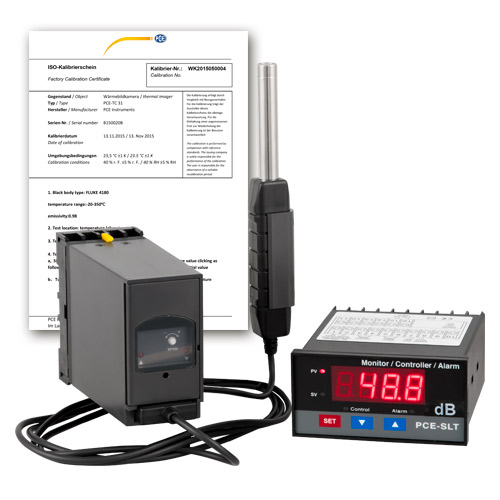

Delivery contents
1 x Noise meter SLT-ICA
1 x Noise sensor to 1.5 m / 4.9 ft cable
1 x Noise transmitter
1 x Digital display
1 x Sensor bracket to screw on
1 x User manual
1 x ISO calibration certificate
