Specification
Rotational speed:
0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100 and 200 rpm
Torque range: Rotational viscometer (RV)
Viscosity range
Millipascal-second (mPa.s) / Centipoise (cP):
20 ... 13,000,000 mPa.s / 20 ... 13,000,000 cP in 114 ranges; 19 revs with 6 spindles
Temperature sensor specifications
Measuring range: -15 ... +180 ° C / +5 … +356 ° F
Resolution:0.1 ° C / 0.1722 ° F
Accuracy:±0.1 ° C
General specifications
Accuracy:± 1% full scale (FS)
Repeatability:± 0.2% FS
Power supply:100 ... 240 V / 50 ... 60 Hz
Current consumption:0.2 A
Operating temperature:+10 ... +40 ° C / +50 … 104 ° F
Relative humidity:< 80%
Maximum altitude:2,000 m / 6,561 ft above sea level
Approx. dimensions:330 x 300 x 430 mm / 13.0 x 11.8 x 17.0 in
Approx. weight:10.0 kg / 22.1 lbs
Standards:BS 6075, BS 5350, ISO 2555, ISO 1652, ASTM 115, ASTM 789, ASTM 1076, ASTM 1084, ASTM 1286, ASTM 1417, ASTM 1439, ASTM 1638, ASTM 1824, ASTM 2196, ASTM 2336, ASTM 2364, ASTM 2393, ASTM 2556, ASTM 2669, ASTM 2849, ASTM 2983, ASTM 2994, ASTM 3232, ASTM 3236 and ASTM 3716
Delivery contents

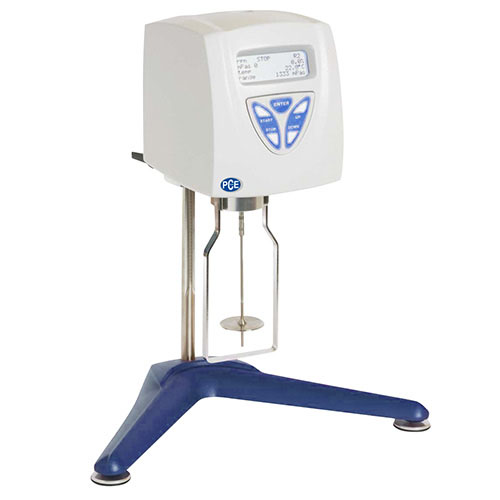

1 x PCE-RVI 2 V1R viscometer / viscosity meter
1 x Set of x 6 spindles: R2, R3, R4, R5, R6 and R7 (model V1R)
1 x Storage stand for spindles
1 x Laboratory stand with rack
1 x Temperature sensor
1 x Guard for measuring spindle
1 x Assembly tool
1 x Power cable
1 x Carrying case
1 x Software for displaying measured data
1 x User manual
