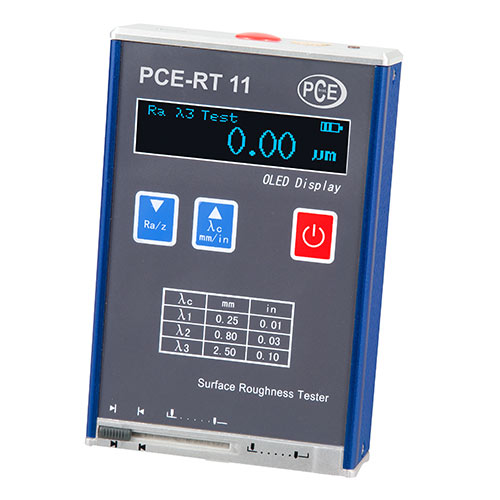

PCE RT 11-ICA Roughness Tester

Specification

Roughness parameters: Ra, Rz, Rq, Rt

Accuracy :± 15%

Repeatability :< 12%

Measuring area Rz, Rt:0.1 … 50 µm

Measuring area Ra, Rq:0.05 … 10 µm

Cut-off length:f0.25 mm, 0.8 mm, 2.5 mm

Scanning path in total:6 mm

Probing speed:1 mm / s

Probe system:Piezoelectric probe

Inclination angle:OLED display

Ambient temperature:-20 … 40°C / -4 ... 104°F

Humidity:< 90 %

Power supply:3.7 V Li-Ion battery

Load-time:3 hours

Dimension :106 x 70 x 24 mm / 4.2 x 2.8 x 1 in

Weight: 200 g / < 1 lb

Delivery contents

1 x Material Tester PCE-RT 11-ICA

1 x Roughness standard

1 x Charger

1 x Case

1 x User’s manual

1 x ISO calibration certificate
