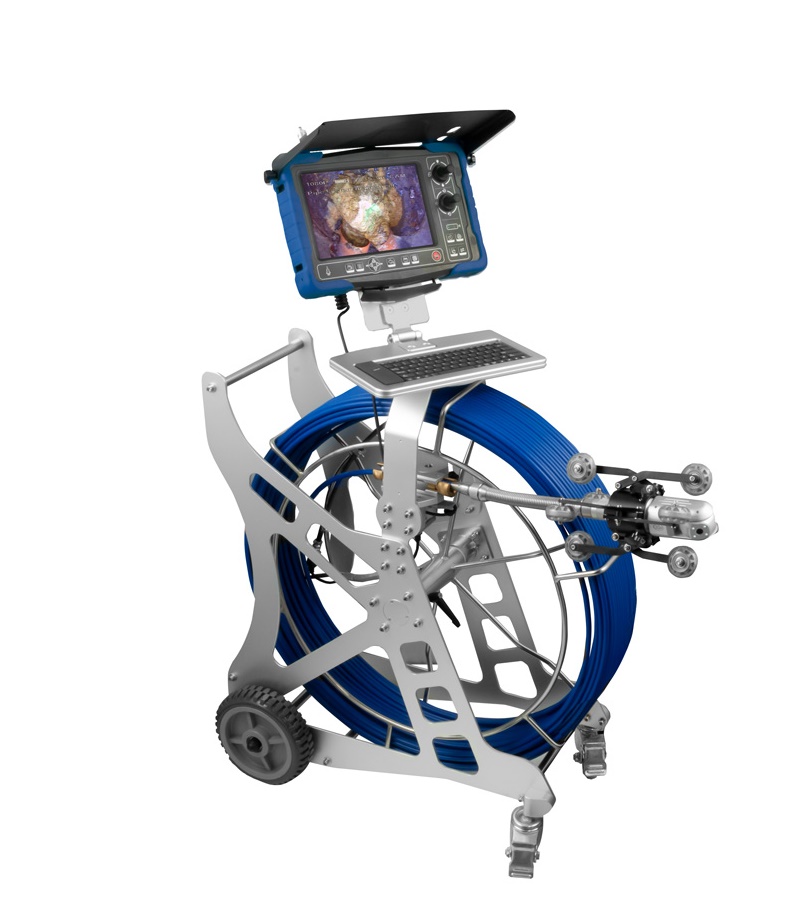

PCE PIC 120 Pipe Inspection Camera

Camera head diameter: 60 mm / 2.4 in

Head rotation: Horizontal: 360°; Vertical: 180°

Cable length: 120 m / 393.7 ft

Sight depth: 20 ... 100 cm

Perspective: 105°

Pipe diameter from / to : 80 ... 1200 mm / 3.1 ... 47.2 in

Lighting: 4 x LED (dimmable)

White balance: Automatically

Image sensor: 1 / 2.9" Sony CCD; 1920 x 1080 pixels

Display: 10.1" LCD display 1280 x 800 pixels

Interface: USB 2.0; HDMI

Memory option: Video (AVI), Photo (JPEG) and Sound

Image memory: SD card up to 256 GB

Video output format: PAL 1080P, 720P, CVBS, NTCS 1080P, 720P, CVBS

Menu navigation: Multilingual

Length measurement: 0 ... 120 m / 0 ... 393.7 ft

Data entry: Possible by keyboard

Operating conditions: -10 ... 50°C / 30 ... 90% rh

Storage conditions: -20 ... 60°C / 30 ... 90% rh

Power supply: Power supply 110V ... 240V AC / 13.5V / 5 A DC

Li Ion battery 12V / 6000-mAh

Protection class: Camera head: IP68

Dimensions: Complete: 87.5 x 97.8 x 40.6 cm

Camera head: 60 x 146 mm / 2.4 x 5.7 in (total length: 360 mm / 14.2 in)

Weight: About 35 kg / 77.2 lbs

Delivery scope:

1 x Videoscope PCE-PIC 120

1 x 120 m / 393.7 ft push cable on trolley

1 x Screen with keyboard

1 x Camera car

1 x Camera head

1 x Locator transmitter

1 x Camera connector with spring

1 x Roll center star

1 x Tool set

1 x Power supply

1 x User manual

Datasheet
