pH Measurement: automatic 10 ... 40 °C / 50 ... 104 °F
Measurement range0.00 ... 14.00 pH
Resolution0.01 pH
Accuracy± 0.02 pH +2 digits
Calibration2-point calibration (pH4, pH7)
Temperature compensationAutomatic with additional temperature sensor (0 ... 60 ºC / 32 ... 140 ºF) or manual (0 ... 100 ºC / 32 ... 212 ºF)
Redox Measurement
Measurement range1999 ... 0 ... 1999 mV
Resolution1 mV
Accuracy± 0.5 % + 2 digits
Conductivity Measurement
Measurement range
0 ... 200 μS/cm
0.2 ... 2.0 mS/cm
2 ... 20.0 mS/cm
20 ... 200 mS/cm
Resolution
0.1 μS/cm
0.001 mS/cm
0.01 mS/cm
0.1 mS/cm
Accuracy± 2 % of the measurement range + 1 digit
Calibrationat 1413 μS/cm
Temperature compensationAutomatic (0 ... 60 ºC / 32 ... 140 ºF)
Total dissolved solids (TDS) Measurement
Measurement range
0 ... 132 ppm
132 ... 1320 ppm
1320 ... 13200 ppm
13200 ... 132000 ppm
Resolution
0.1 ppm
1 ppm
10 ppm
100 ppm
Accuracy± 2 % of the measurement range + 1 digit
Temperature compensationAutomatic (0 ... 60 ºC / 32 ... 140 ºF)
Salt Content Measurement
Measurement range
0 ... 20 mg/l (in water)
0 ... 100 % (in air)
0 ... 50 °C / 32 ... 122 ºF
Resolution
0.1 mg/l
0.1 %
0.1 °C
Accuracy
± 0.4 mg/l
± 0.7 %
± 0.8 °C
CalibrationIn the air
Temperature compensationAutomatic (0 ... 50 ºC / 32 ... 122 ºF)
Electrode usable in the pH rangepH 4 ... pH 10
Temperature Measurement
Measurement range0 ... 60 °C/ 32 ... 140 ºF
Resolution0.1 °C
Accuracy± 0.8 °C
General Specifications
Measurement rateadjustable from 1 second to 8 hours 59 minutes 59 seconds
DisplayLC-Display 52 x 38 mm / 2 x 1.5"
Memoryflexible via SD card memory 1 ... 16 GB
InterfaceRS-232
Softwareavailable as accessory (optional)
Power supply6 x 1.5 V AA batteries / 9 V-power adapter (optional)
Operating conditions0 ... +50 °C / < 85 % r.H.
Dimensions177 x 68 x 45 mm / 7.0 in x 2.7 in x 1.8 in
Weight490 g / 1.1 lbs

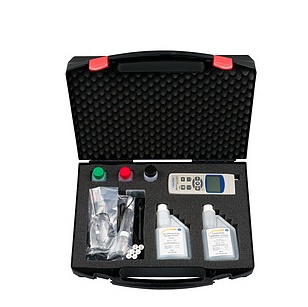

Delivery Scope
1 x pH-Meter PCE-PHD-1-KIT1
1 x oxygen probe OXPB-11
1 x pH electrode PCE-PE-03
1 x conductivity electrode PCE-CDPB-03
1 x temperature sensor PCE-TP-07
1 x SD memory card 2 GB
1 x storage solution PCE-SSO-250 (250ml)
1 x calibration solution PCE-PH4-50 (50ml)
1 x calibration solution PCE-PH7-50 (50ml)
1 x electrolyte solution OXEL-03 for oxygen probe (50ml)
1 x conductance solution PCE-CDS-1413-250 (250ml)
6 x batteries
1 x user manual
1 x carrying case (inner foam prepunched)
