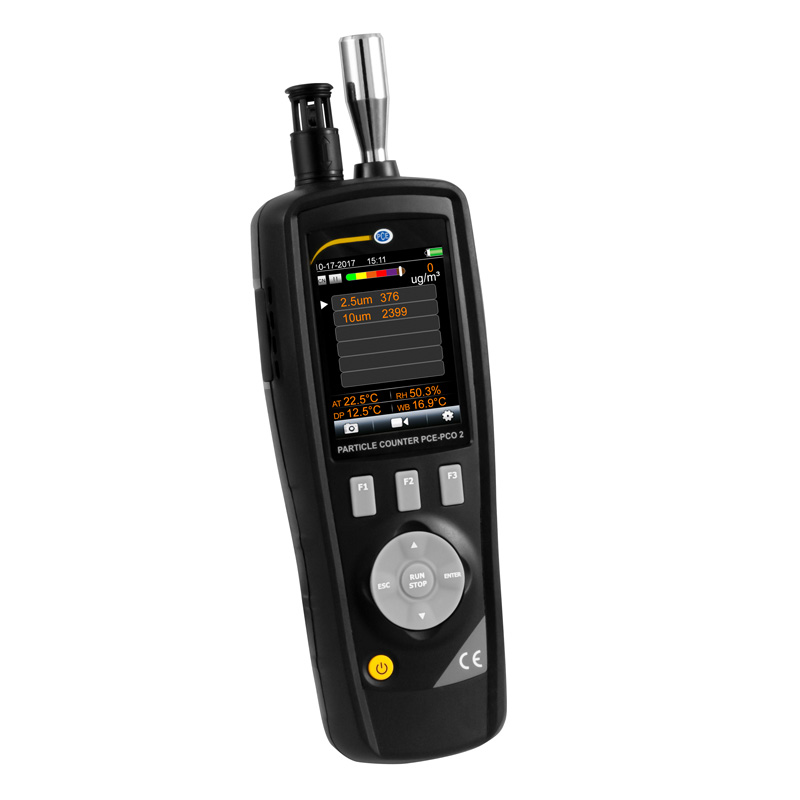

PCE PCO 2 Air Quality Particle Counting Meter

Specifications

Particle specifications

Particulate matter channels:PM 2.5 / PM 10

Particle concentrations:0 ... 2000 μg / m³

Resolution:1 μg / m³

Particle counter specifications

Particle sizes (in micrometers):0.3 / 0.5 / 1.0 / 2.5 / 5.0 and 10 μm

Flow rate:2.83 l / min

Coincidence error:< 5 % at 2,000,000 particles per cubic foot

Counting efficiency:50 % at 0.3 μm;

100 % with particle size: > 0.45 μm

Memory capacity:Stores up to 5,000 data sets

Counting modes:Cumulative, differential, concentration

Temp. and humidity measurement specifications

Air temp. measuring range:0 ... +50 °C / +32 ... +122 °F

Dew point temp. measuring range:0 ... +50 °C / +32 ... +122 °F

Humidity measuring range:0 ... 100 % RH

Air temp. accuracy:+10 ... +40 °C / +50 ... +104 °F: ± 0.5 °

Others: ± 1 °

Dew point temp. accuracy:

0 ... +10 °C / +32 ... +50 °F: ± 1 °

+10 ... +40 °C: / +50 ... +104 °F ± 0.5 °

Humidity accuracy:

0 ... 20 % RH: ± 5 %

20 ... 40 % RH: ± 3.5 %

40 ... 60 % RH: ± 3 %

60 ... 80 % RH: 3.5 %

80 ... 100 % RH: ± 5 %

Operating conditions:0 ... +50 °C / +32 ... +122 °F, 10 ... 90 % RH, non-condensing

Storage conditions:-10 ... +60 °C / +14 ... +140 °F, 10 ... 90 % RH, non-condensing

Display:2.8", 320 x 240 pixel, backlit, TFT full-color LCD screen

Power supply:1 x rechargeable battery

Battery life:Approx. 4 hours of continuous operation at full charge

Battery recharge time:Approx. 2 hours using AC charger

Dilivery Contents

1 x PCE-PCO 2 air quality particle counting meter

1 x zero filter

1 x rechargeable battery

1 x AC charger

1 x USB cable

1 x user manual

1 x mini tripod

1 x hard case
