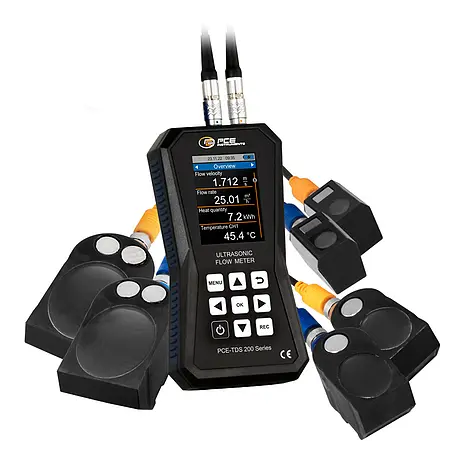

PCE PCE-TDS 200 SML Ultrasonic Flow Meter (±32 m/s)

Measuring range: ±32 m/s

Accuracy: 0.001 m/s

Accuracy (DN ≥50 mm): ±1.5% rdg. (>0.3 m/s)

Accuracy (DN <50 mm): ±3.5% rdg. (>0.3 m/s)

Reproducibility: ±0.5%

Sensor (PCE-TDS 200 S): Pair

Pipe diameter (S): DN 15…100 / 20…108 mm

Temperature resistance (S): -30…160 °C

Dimensions (S): 45 × 30 × 30 mm

Sensor (PCE-TDS 200 M):

Pipe diameter (M): DN 50…700 / 57…720 mm

Temperature resistance (M): -30…160 °C

Sensor (PCE-TDS 200 L):

Pipe diameter (L): DN 300…6000 mm

Dimensions (L): 91 × 52 × 44 mm

Measuring method: Z, V, N, W

Medium: water, sea water, oil, crude oil, methanol, ethanol, diesel, petrol, petroleum, user-defined

Impurity: <5%

Pipe material: copper, steel, stainless steel, aluminium, brass, cast iron, iron, nickel, titanium, zinc, acrylic, PE, PP, PVC, nylon, user-defined

Inner pipe lining: none, epoxy, rubber, mortar, PS, PE, PTFE, PU, PP, user-defined

Measurement parameters: flow velocity, volume flow, volume

Units (length): mm, in

Units (velocity): m/s, ft/s

Units (flow): m³, l, gal, igl, mgl, cf, bal, ib, ob

Time units: s, min, h, d

Units (volume): m³, l, gal, igl, mgl, cf, bal, ib, ob

Display: 2.8" LCD

Menu: metric / imperial

Languages: DE, EN, FR, ES, IT, NL, PT, DK, TR, PL, RU, CN, JP

Operating conditions: -20…+65 °C; 10…95% RH

Data logger: 32 GB / 10 million points

Interface: USB

Protection class: IP52

Power supply: Internal LiPo (3.7 V, 2500 mAh) / External USB 5 V

Operating time: ~10 h

Dimensions: 165 × 85 × 32 mm

Weight: 255 g

Delivery scope: Main unit, S/M/L sensors (pairs), cables, cable ties, power supply, USB-C cable, ultrasonic gel, measuring tape, case, manual
