Flow measurement
Measuring range: ±32 m/s
Accuracy: 0.001 m/s
Genauigkeit:
DN ≥50 mm: ±1.5 % f.s. for velocities > 0.3 m/s
DN <50 mm: ±3.5 % f.s. for velocities > 0.3 m/s
Reproducibility: ±0.5 % of measured value

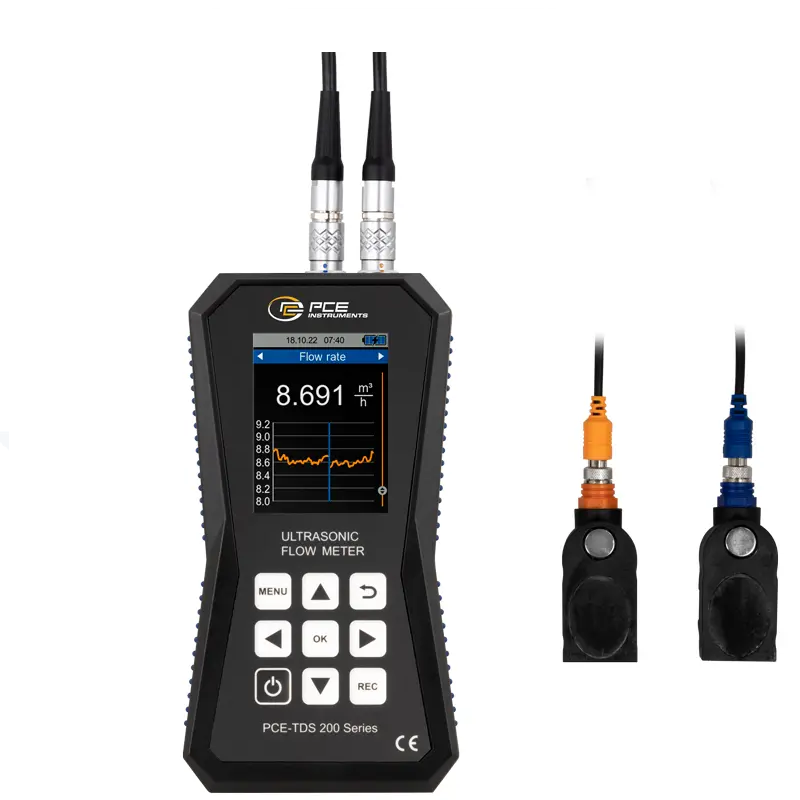

PCE-TDS 200 M SENSOR: Sensor pair
Pipe diameter: DN 50 ... 700 / 57 ... 720 mm
Temperature resistance:-30 ... 160 °C
Measuring method: Z, V, N, W
Medium
- water
- sea water
- oil
- crude oil
- methanol
- ethanol
- diesel
- petrol
- petroleum
- user defined
(manual input of the sound velocity from the medium)
All liquids with an impurity: <5 %
Pipe material
- copper CU
- steel FE
- stainless steel VA
- aluminium AL
- brass ME
- cast iron CI
- iron FE
- nickel NI
- titanium TI
- zink ZI
- acrylic AC
- polyethylene PE
- polypropylene PP
- polyvinyl chloride PVC
- nylon NY
- user defined
(manual input of the transversal sound velocity of the pipe material)
Inner pipe lining
- no lining
- user defined
- epoxy resin
- rubber
- mortar
- polystyrene PS
- polyethylene PE- polytetrafluoroethylene PTFE
- polyurethane PU
- polypropylene PP
- user defined
(manual input of the longitudinal sound velocity of the inner lining of the pipe)
Measurement parameters: flow velocity, volume flow and volume
Units (dimensions): mm, in
Units (flow velocity): m/s, ft/s
Units (volume flow): m³, l, gal, igl, mgl, cf, bal, ib, ob
Time specification: seconds, minutes, hours, days
Units (volume): m³, l, gal, igl, mgl, cf, bal, ib, ob
Further specifications
2.8" LCD
Menu: metrisch / imperial
Menu languages: German, English, French, Spanish,Italian, Dutch, Portuguese, Danish, Turkish, Polish, German Turkish, Polish, Russian, Chinese, Japanese
Operating and storage conditions
Temperature: -20 ... +65 °C
Humidity: 10 ... 95 % r. h., non-condensing
Data logger: 32 GB memory capacity / 10 million measuring points
Unterface: USB (for online measurement, readout of the internal memory memory and for recharging the battery)
Protection class: IP52
Power supply Internal: Internal: LiPo battery (3.7 V, 2500 mAh), External: USB 5 VDC, 500 mA
Operating time: approx. 10 h
Dimensions: 165 x 85 x 32 mm
Weight: 255 g
