Specification
Measuring range: 0 ... 100 %
Maximum permissible error (absolute): Verified by lab tests
Operating temperature range: 0 ... +80 °C
Working mode: continuous operation
Measuring rate: 1 s
Power supply: 24 VDC
Current consumption: 200 mA
Warm-up time (start-up): 30 min
Outputs: RS485 (Modbus RTU), 4-20 mA
[RS485: max. cable length 1000 m; 4-20 mA: max. length 100 m (max. length up to SPS)]
Inputs: 2 x digital 24 VDC

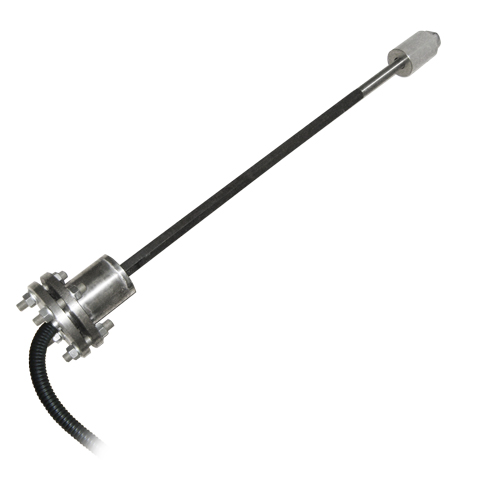

Dimensions rod sensor: L 500 ... 1000 mm, 15 ... 30 mm dia.
Dimensionsbow sensor: L 200 mm, 15 ... 30 mm dia.
Dimensions (electronics unit): 255 х 170 x 60 mm
Protection (sensor): IP65
Protection (electronic unit): IP54
Dimensions
Rod sensor: 2 ... x kg (depending on the length)
Bow sensor: 3 kg
Electronics unit: 2 kg
Delivery contents
- 1 x PCE-MWM 2xx sensor
- 1 x RS-485 / USB converter
- 2 x 5 m cables
- 1 x CD (PC software, manual)
