PCE MWM 240-A Absolute Moisture Sensor

Specification

Measuring range:0 ... 100 %

Maximum permissible error (absolute):Verified by lab tests

Operating temperature range:0 ... +80 °C

Working mode:continuous operation

Measuring rate:1 s

Power supply:24 VDC

Current consumption:200 mA

Warm-up time (start-up):30 min

Outputs:RS485 (Modbus RTU), 4-20 mA

[RS485: max. cable length 1000 m; 4-20 mA: max. length 100 m (max. length up to SPS)]

Inputs:2 x digital 24 VDC

Dimensions rod sensor:L 500 ... 1000 mm, 15 ... 30 mm dia.

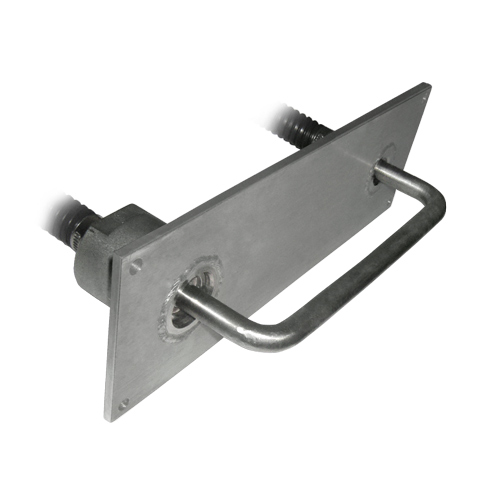

Dimensionsbow sensor:L 200 mm, 15 ... 30 mm dia.

Dimensions (electronics unit):255 х 170 x 60 mm

Protection (sensor):IP65

Protection (electronic unit):IP54

Dimensions

Rod sensor:2 ... x kg (depending on the length)

Bow sensor:3 kg

Electronics unit:2 kg

Dilivery Contents

- 1 x PCE-MWM 2xx sensor

- 1 x RS-485 / USB converter

- 2 x 5 m cables

- 1 x CD (PC software, manual)
