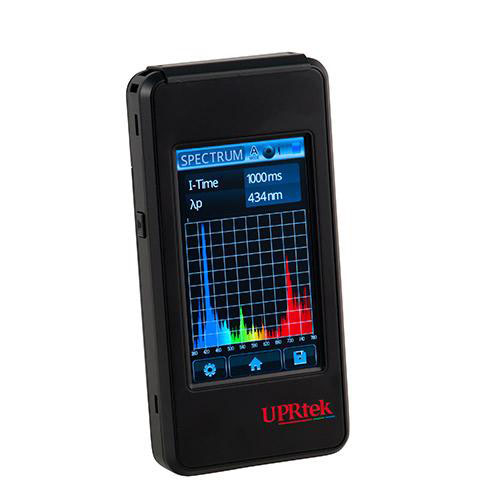

Manufacturer: PCE-ANH
Model : MK350S
Warranty : 12 months
Specification
Sensor: CMOS linear image sensor
Spectral band width: Approx. 12 nm
Receptor size: Ø 6.6 ± 0.1 mm
Cosine Balance
Measurement range: 70 ... 70000 Lux
Range of wave lengths: 280 ... 780 nm
Averaging time range: 6 ... 5000 ms
Sampling rate: Single / continuous
Averaging mode: Automatic / manual
Measuring mode:
Basic mode
Light spectrum diagram mode
CIE 1931 Chromaticity shares
CIE 1976 Chromaticity shares
Color Index mode
Lux mode
Logging mode
CCT color temperature
Mode for quality control
Comparative measurement mode
View of measured data
Measurement functions:
CCT
Lux measurement
CRI Ra / R1 ... R15
Spectral radiation
CIE chromatic coordination
wave length (peak / dominance)
Δx, Δy, Δu', Δv'
Duv, Purity
PPF (400 ... 700 nm)
PPF-R (600 ... 699 nm)
PPF-G (500 ... 599 nm)
PPF-B (400 ... 499 nm)
PPF-UV (380 ... 399 nm)
PPF-NIR (700 ... 780 nm)
BIN
Digital resolution: 16 bits
Calibration on black: yes
Repeatability wave length: ± 0.5 nm
Accuracy illumination level (at color temperature: 2856 K / Brightness: 20 kLux): ± 5%
Accuracy of color measurement : ± 0.0025 in CIE 1931 x,y
Repeatability of color measurement (at color temperature: 2856 K / Brightness: 20 kLux): ± 0.0005 in CIE 1931 x,y
Accuracy of color temperature CCT (at color temperature: 2856 K / Brightness: 20 kLux): ± 2%
CRI accuracy @ Ra (at color temperature: 2856 K / Brightness: 20 kLux): ± 1.5%
General Technical Specifications of LED Spectrometer
Display: 3.5'' LCD 320 x 240 Touch Panel
Camera resolution: 800 x 480 pixels
Touch screen
Max. data capacity: 2 mega pixels
Battery operation: 2000 data sets on 2 GB memory card
Battery type: Approx. 4 hours with fully charged battery
Data output: 2500-mAh/ Li-Ion; SD memory card
Data format: MS Excel; JPG
Dimensions: 163 x 81 x 51.8 mm / 6.4 x 3.1 x 2.03 in (H x W x D)
Weight (with battery): Approx. 250 g / < 1 lb
Operating temperature: 0 ... 35°C / 32 ... 95°F
Surrounding temperature: -10 ... 40°C / 14 ... 104°F
Languages: English; Japanese; Chinese
Delivery contents
1 x LED Spectrophotometer MK350S
1 x Hard case
1 x Protecting case
1 x Battery
1 x USB cable
1 x Charging adapter
1 x Safety band
1 x Instruction manual
1 x Holder for stand
Manual
