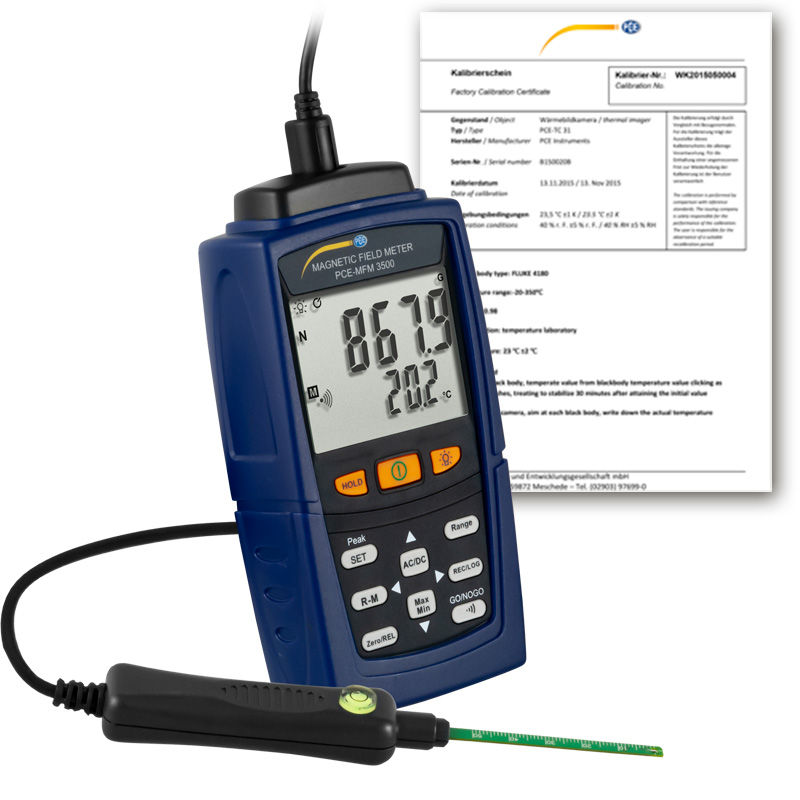

PCE MFM 3500-ICA Electromagnetic Field Meter (150 mT~3000 mT; 1500 G~30000 G; -20~50°C; ISO Calibration Cert.)

-Measuring function: DC Milli Tesla

Measuring range ResolutionAccuracy

300.00 mT 0.01 mT ± (4% + 10 Dgt)

2,000.0 mT 0.1 mT ± (4% + 10 Dgt)

2,000.1 ... 3,000.0 mT 0.1 mT N / A

-Measuring function: DC Gauss

Measuring range ResolutionAccuracy

3,000.0 G 0.1 G ± (4% + 10 Dgt)

20,000 G 1 G ± (4% + 10 Dgt)

20.0001 ... 30.000 G1 G N / A

- Measuring function: AC milli Tesla

Measuring rangeResolutionAccuracy

150.00 mT 0.01 mT ± (5% + 20 Dgt)

1,500.0 mT 0.1 mT ± (5% + 20 Dgt)

-Measuring function: AC Gauss

Measuring rangeResolutionAccuracy

1,500.0 G 0.1 G ± (5% + 20 Dgt)

15,000 G 1 G ± (5% + 20 Dgt)

The accuracies refer to the following ambient conditions:

23°C / 73.4°F ± 5°C / 41°F, < 80% RH

-Measuring function: Temperature

Measuring rangeResolutionAccuracy

-20 ... 50°C ± 0.1°C ± 1.0°C

-4 ... 122°F ± 0.18°F ± 1.8°F

AC Frequency: 40 ... 500 Hz

Storage:Manual: up to 200 values; Automatic: up to 7,000 values

Interface: Mini USB

Display: LC display, 5 digits, display up to 30,000

Sensor: Removable, cable length approx. 1 m / 3.3 ft

Automatic switch-off function: Off or after 15 minutes

Power supply batteries: 6 x 1.5V AAA

Battery Life: About 100 hours

Power supply power supply: Primary: 100 ... 240V; Secondary: 9V, 0.5A

Operating conditions: 5 ... 40°C / 41 ... 104°F, < 80% rh

Storage conditions: 0 ... 50°C / 32 ... 122°F, < 70% rh

Working height: 2,000 m / 6,561.7 ft

Pollution degree: 2

Dimensions: 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in

Weight: About 320 g / < 1 lb (with batteries)

Delivery Scope:

1 x Electromagnetic field meter PCE-MFM 3500

1 x Probe

1 x Mini USB cable

1 x Software CD

6 x AAA 1.5V batteries

1 x Power supply

1 x Device bag

1 x User manual

1 x ISO calibration certificate
