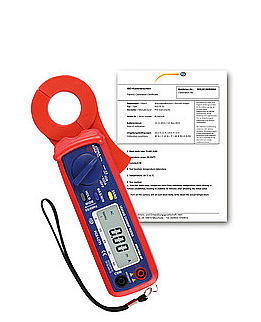

PCE LCT 1-ICA Leakage Current Clamp (100A, 400V, 400Ω)

- Leakage current and current (AC A):

Measurement ranges: 50 / 60 Hz; 40-mA; 400-mA; 4 A; 40 A; 80 A; 80 A -100A

Resolution: 400 Hz ... 1 kHz; 10 µA; 100 µA; 1-mA; 10-mA; 10-mA; 100-mA

Accuracy: ± (1% + 0.5-mA); ± (4.5% + 0.5-mA); ± (3% + 5-mA); ± (3% + 5-mA); ± (4% + 0.1-mA); ± (4% + 0.1 A)

± (4% + 1 A); ± (4% + 1 A); ± (2.5% + 1 A); ± (3% + 1 A); ± (5% + 1 A); ± (5% + 1 A)

- Voltage (AC V):

Measurement ranges: 50 / 60 Hz; 400V

Resolution: 400 Hz ... 1 kHz; 1V

Accuracy: ± (1.5 % + 2 digits); ± (2 % + 4 digits)

General Technical Specifications:

Display: 3 3/4

Measured electrical properties: AC V, AC A, resistance

Security standards: CAT III 300V / CAT II 600V

Diameter of the clip: 30 mm

Input impedance: 10 MΩ

Registration rate: 2 Hz (numerical values), 20 Hz (bar graph)

Operating temperature: -10 ... 50ºC / 14 ... 122ºF

Operating humidity: <85% H.r.

Storing temperature: -20 ... 60ºC / -4 ... 140ºF

Auto shut-off: After 30 minutes

Power: 9 V battery

Input current: 10-mA

Weight: 200 g / < 1 lb

Dimensions: 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in

Delivery scope:

1 x PCE-LCT 1 Clamp Meter

1 x 9 V battery

2 x test cables

1 x carrying case

1 x user's manual
