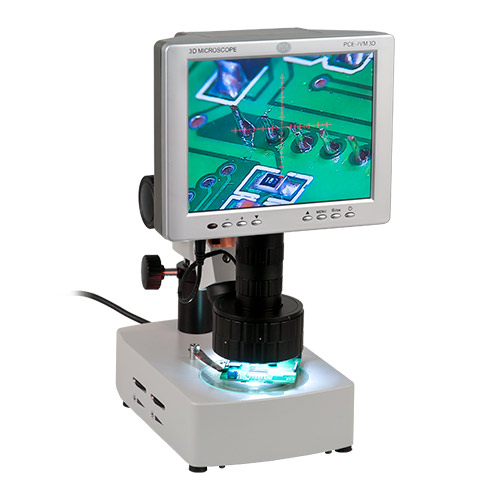

PCE IVM 3D Inspection Camera (12~75x, 800 x 600 pixel)

Specification

Display:8" LC-display

Resolution:800 x 600 pixels

Magnification:12 ... 75-fold continuously

Light source:Transmitted and reflected light continuous leveling

Connections:USB 2.0, AV out

Power Source :100 ... 240V AC 50 / 60 HZ

System requirements: Up from Windows 2000/XP

Working height:Min. 10 mm, max. 175 mm / min. 0.39 in, max. 6.9 in

Dimensions:Display: 220 x 160 x 100 mm / 8.7 x 6.3 x 3.9 in

Table: 255 x 155 x 64 mm / 10 x 6.1 x 2.5 in

Delivery contents

1 x Mechanical 3D-microscope PCE-IVM 3D

1 x USB interface cable

1 x Video cable

1 x Power cable

1 x Dust cover

1 x Aluminum carrying case with key

1 x Object plate made of glass

1 x Contrast plate black / white

1 x Backup lamps for reflecting light

1 x Backup lamps for transmitting light

1 x Backup fuse

1 x Cleaning tissues

1 x Instruction manual
