Specification
Measurement range (selectable): 0... 500°C / 32 ... 932°F
Accuracy:± 1% of measured value
Emissivity:0.2 ... 1.0 adjustable
Measuring spot (selectable):1.6 mm at 35 mm / 1.4 in
3 mm at 70 mm / 2.8 in
Spectral range:8 ... 14 µm
Power supply:24V DC
Impedance:900 ohms
Response time:10 ms
Technical specifications of the display
Interface:Modbus RTU
Storage interval:1/s ... 1/day
Micro SD card:Max. 2 GB (not included)
Data format:CSV
Dimensions display:96 x 64 x 36 mm / 3.8 x 2.5 x 1.4 in
Cable length:2 m / 6.6 ft
Weight:80 g / < 1 lb
Protection class:IP65
Ambient temperature:0 ... 120°C / 32 ... 248°F
Ambient humidity:Max. 95% RH
Delivery contents

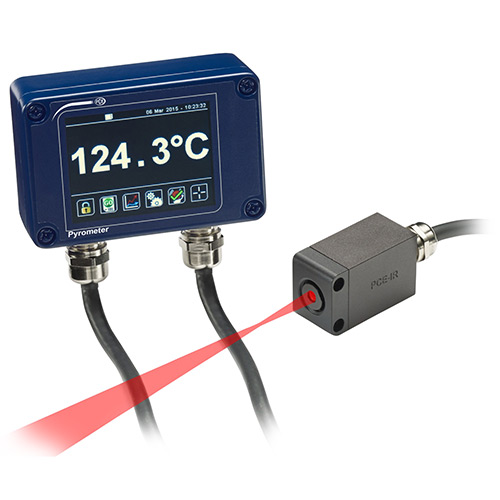

1 x Infrared thermometer PCE-IR 57
1 x Display (if selected)
1 x User manual
