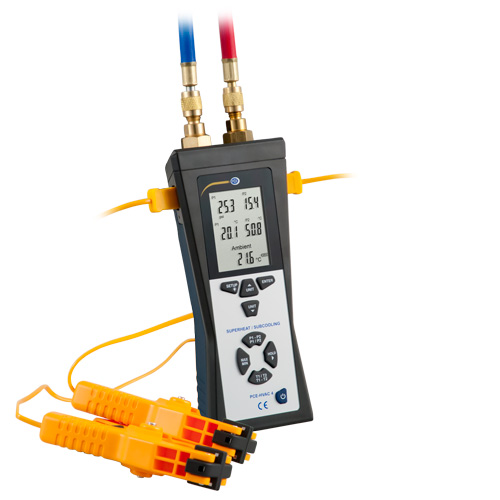

PCE HVAC 4 Manometer (-60~537°C)

Specifications

Operating conditions:0 ... 50°C / 32 ... 122°F, < 75% r.H.

Storage conditions:-20 ... 60°C / -4 ... 140°F, 0 ... 80 r.H.

Backlight:Blue

Battery:7.4V polymer Li-ion battery

Battery warning indicator:Empty battery symbol is displayed when the battery voltage drops below the operating level

Automatic shutdown:After 30 minutes of inactivity, when activated

Display outside the measuring range:"OL" or "-OL" is displayed

Technical Data Pressure Measurement

Type of connector:Standard 1/4 NPT (male)

Measuring range:

-14 ... +500 psi

-96 ... +4000 kPa

-0.96 ... +34.47 bar

-28.5 ... 1018 inHg

-72 ... +2585 cmHg

Resolution:

0.1 psi / inHg

1 kPa / cmHg

0.01 bar

Measuring accuracy at 25°C / 77°F, <75% r.H. -29 … 0 inHg: ± 0.2 inHg

-74 … 0 cmHg: ± 0.4 cmHg

0 … 200 psi: ± 1 psi

0 … 1378 kPa: ± 7 kPa

200 … 500 psi : ± 0.3% + 1 psi

1378 … 3447 kPa: ± 0.3% + 7 kPa

Maximum overload800 psi

Unitspsi, kPa, inHg, amHg, bar

Technical Data Temperature T1 / T2

Sensor type:Thermoelement Type K

Measuring range: -60 ... 537°C / -76 ... 998°F

Resolution:0.1°C / 32°F

Measuring accuracy:-60 ... 93°C / -76 ... 199°F: ± 0.5°C

93 ... 537°C / -199 ... 998°F: ± 1°C

Technical Data Ambient Temperature

Sensor type:NTC

Measuring range:0 ... 50°C / 32 ... 122°F

Resolution:0.1°C / 32°F

Measuring accuracy:±0.5°C / 33°F

Dilivery Contents

1 x Differential pressure meter PCE-HVAC 4

1 x 7.4V polymer Li-ion battery

1 x Power adapter

2 x Pressure hose

2 x Measuring terminal

2 x Thermoelement Type K

1 x Carrying case

1 x User manual
