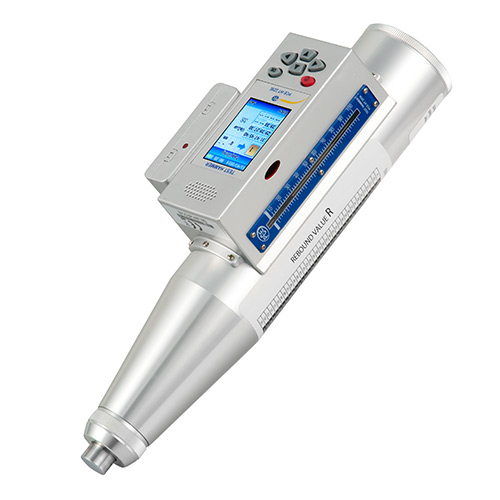

PCE HT 225E Surface Testing - Concrete Hammer (100~600 kg/cm²)

Specifications

Test range:10 ... 60 MPa or 100 ... 600 kg/cm² / 1450.38 ... 8702.26 psi

Impact energy:2.207 J or N-m / 1.6278 ft-lb

Impact stroke:75 ± 0.3 mm / 2.95 ± 0.012 in

Spring rigidity: 785 J or N-m / 578.99 ft-lb

Average rebound value (for calibration):80 ± 2

Radius of spherical tip:25 ± 1 mm / 0.99 ± 0.04 in

Adhesion of the measurement tip:0.65 ... 0.15 N

Data interface:USB 2.0 port

Data storage or memory capacity:Up to 200 measurement values

Display:LCD, 176 x 220 mm / 6.9 x 8.7 in

Power supply:4 x AAA alkaline batteries

WeightApprox. 1.1 kg / 2.4 lbs

Dimensions:Approx. 54 x 280 mm / 2.13 x 11.02 in

Dilivery Contents

1 x PCE-HT 225E concrete rebound test hammer

1 x USB cable

1 x PC software

1 x Grindstone for rough surfaces

1 x User manual

1 x Carrying case
