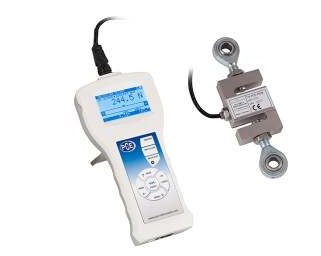

PCE FB 200K Force Gaug (200,000 N)

Measuring range / resolution: 200.000 N (20.000 kg)/50 N ( 5 kg)

Uncertainty in measurement: ±0.1 % of measurement range

Gravity zone: manually adjustable or per GPS data

Measurand: N, g, lb, oz, kg, kgf, lbf, ozf

Calibration: with external F2 weights

Max. overload: +/- 20 % above measuring range

Sampling rate: 10 samples / sec. or 40 samples / sec.

Measurement function: Compressive and tensile force measurement / PEAK function (MIN- MAX Hold)/ threshold measurement/ real-time measurement with software

Display: Graphic- Display 61 x 34 mm / automatic Display adjustment / background lights

Menu navigationmultilingual: German, English, Spanish

Data storage facilities: internal storage and Mini SD memory card (Internal storage limited to a max. of 6,400 measurements)

Data storage: manually- by key press

automatically: - 0.025 s - 99.9 sec. (adjustable)

Interface: serial RS-232, 9-pole and USB

Software:incl. software to evaluate and control

Surrounding conditions:- 10 °C ... +40 °C

Power Supply: 4x Ni-MH 2700 mAh AA batteries (replaceable) or via Adapter ~230 V/12 V; 1.2 A incl. auto OFF function option

Battery life time: approx. 20 hrs. (without background lights approx. 45 hrs.)

Dimensions: 210 x 110 x 40 mm

Internal measuring cell: part for force input 11 mm long, M6 x 9 mm winding

Cable length of external dynamometric cell: approx. 3 m

Weight without dynamometric cell: approx. 400 g (without the dynamometric cell)

Delivery Scope

1 x force meter for tensile and compressive force depending on picked model

1 x evaluation and control software incl. RS-232 data cable

1 x adapter

1 x dynamometric cell

2 x carry bag

Manual
