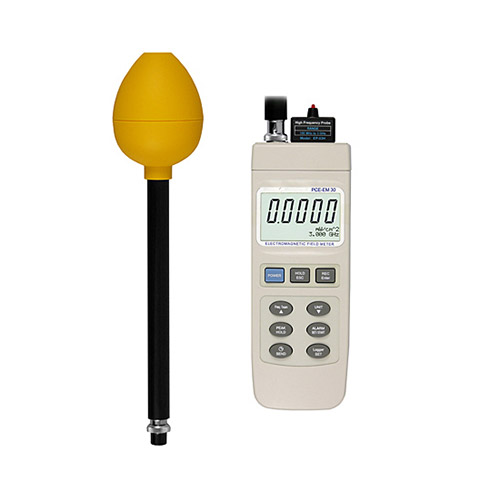

PCE EM 30 Electromagnetic Field (EMF) Meter

Specification

Bandwidth / Frequency range of the probe: EP-03H100 MHz ... 3 GHz

Range selection for the probe EP-03H:900 MHz, 1 GHz, 1.8 GHz,

2.4 GHz, 2.45 GHz, 3 GHz

Bandwidth / Frequency range of the probe: EP-04L100 kHz ... 100 MHz

Range selection for the probe: EP-04L100 kHz, 200 kHz, 500 kHz, 1 MHz,

10 MHz, 13.56 MHz, 100 MHz

Accuracy:±2 dB

Measuring ranges:

0 ... 199.99 V/m

0 ... 99.999 W/m²

0 ... 9.9999 mW/cm²

Resolution:0.01 V/m

0.001 W/m²

0.0001 mW/cm²

Inital value:

> 1 V/m

> 0.03 W/m²

> 0.0003 mW/cm²

External sensor probe types:Triple axis

Display:LCD, 58 x 34 mm / 2.28 x 1.34"

Limit value:Adjustable

Alarm:Acoustic signal when limit value is exceeded

Internal memory:16,000 data records

Power:9 V battery

Operating conditions:0 ... 50 ºC / +32 ... +122 ºF, up to 80 % relative humidity (RH)

DimensionsMeter: 200 x 76.2 x 36.8 mm / 7.88 x 3.00 x 1.45"

Probes: 70 x 240 mm / 2.76 x 9.45"

Weight523 g / 1.16 lb (with battery included)

Delivery contents

1 x PCE-EM 30 electromagnetic field (EMF) meter

2 x external sensor probes

2 x frequency range connectors

1 x 9 V battery

1 x carrying case

1 x user manual
