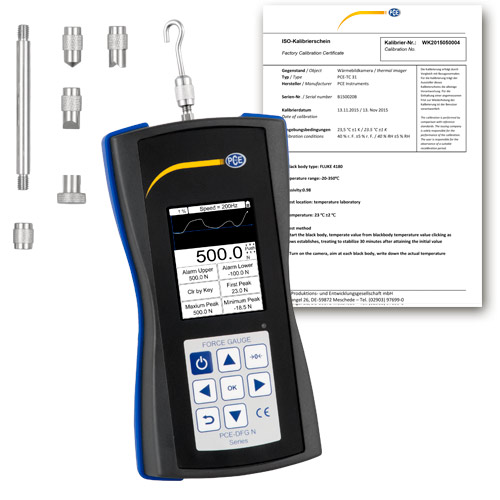

PCE DFG N 500 Dynamometer (0~500 N,0~112 lbs)

Specification

Measuring range:0 ... 500 N or 0 ... 112 pounds

Accuracy:± 0.1% of the measuring range

Resolution:0.1 N

Measurement units:N, kg, lb, KPa

Display:2.8" TFT graphic display

Alarm Modes:Inside, Outside, Crack, Shutdown

Sampling rate:6 ... 1600 Hz

Storage:100 measurements

power supply:NiMh battery 6V / 1600-mAh

Battery life:About 10 hours

Charging adapter:12V / 1A

OutputsInterface: USB

Switching output: 12 V / 50-mA

Protection class:IP 54

Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing

Force-receiving piece:6 x 7 mm / .2 x .3 in

Dimensions:200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in

Weight:540 g / 1.2 lbs

Delivery contents

1 x Dynamometer PCE-DFG N 500

1 x Chisel head adapter

1 x Flat head adapter

1 x Pointed head adapter

1 x Hook adapter

1 x Notched head adapter

1 x Extension bar (90 mm / 3.5 in)

1 x PC software

1 x USB data cable

1 x Power supply

1 x Carrying case

1 x Factory calibration certificate

1 x User manual
