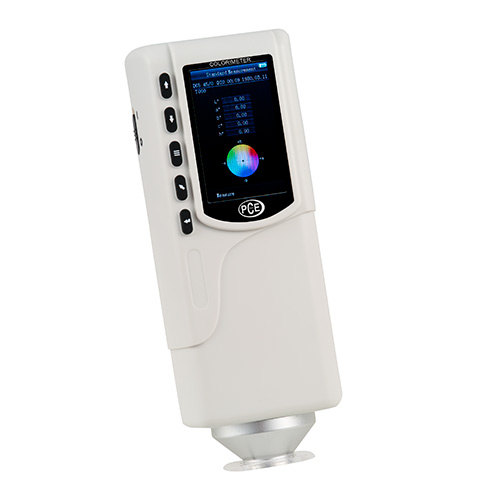

PCE CSM 4 Color Meter

Specifications

Measuring Geometry: 45°/0°

Measuring apertures: Ø20 mm (PCE-CSM 4)

Sensor: Silicium-photodiode

Color spaces: CIEL*a*b*C*h; CIEL a* b*; CIEXYZ

Formula for indifference in color: ΔE*ab; ΔL*ab; ΔE*C*H

Light source: D65

Type of light source: LED

Data memory: 100 standards, 20000 samples

Aberrance in-between the utilities: ≤0.50 ΔE*ab

Repeatability: 30 measurements on average, with standard- white plate

Standard deviation: within ΔE*ab 0.08

Weight: 500 g / 17.6 oz

Dimensions: 205 x 67 x 80 mm / 8.07 x 2.6 x 3.14 in

Power Supply: rechargeable lithium-ion-batteries; 3.7 V at 3200 mAh

Charging time: 8 hours

Battery operation time: approx. 5000 measurements

Lifetime of lamp: 5 years, more than 1.6 million measurements

Temperature range: 0 ... +40 °C / 32 ... +104 °F

Relative humidity: 0 ... 85 %, non-condensing

Dilivery Contents

1 x Colorimeter PCE-CSM 4

1 x USB cable

1 x battery

1 x AC Mains adapter

1 x Wrist band

1 x Standard calibration plate white

1 x Computer software

1 x Instruction manual
