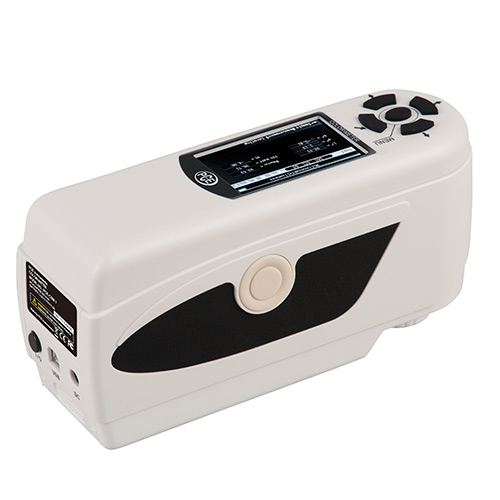

PCE CSM 3 Color Meter

Specifications

Measuring geometry:8°/d

Measuring aperture:Diameter 8 mm

Sensor:Silicon photoelectric diode

Color spaces:CIE L*a*b*C*h, CIE L*a*b*

Color difference formular:ΔE*ab, ΔL*a*b, ΔE*C*h

Errors between each equipment:≤0.50 ΔE*ab

Standard deviation:within ΔE*ab 0.08

Repeatability:average of 30 measurements of standard white plate

Light source:D65

Storage:100 reference values, 20,000 samples

Interface:USB

Power supply:Rechargeable lithium-ion battery; 3.7 V @ 3,200 mAh

Charging time:2 h (8 h at first use)

Battery life:> 3,000 measurements

Lamp life:3 years, more than 1 million measurements

Operating conditions:0 ... +40 °C / 32 ... +104 °F; 0 ... 85 % RH

Dimensions:200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in

Weight:500 g / 17.6 oz

Dilivery Contents

1 x Color meter PCE-CSM 3

1 x Lithium-ion battery

1 x Mains adapter

1 x Calibration plate (white)

1 x PC software

1 x Instruction manual
