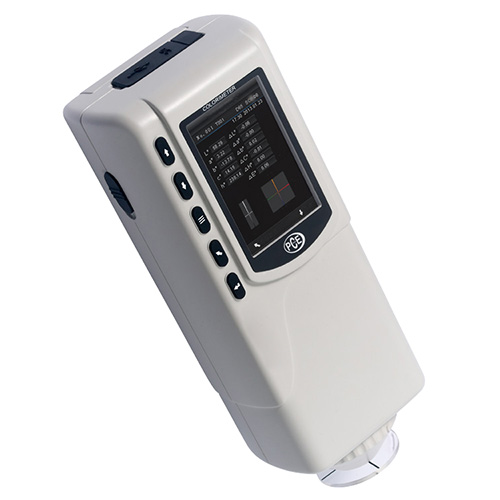

PCE CSM 1 Color Meter

Specifications

Measuring geometry:8°/d

Measuring aperture:Ø 6 mm

Sensor:Silicon photoelectric diode

Color spaces:CIE L*a*b*C*h, CIE L*a*b, CIE XYZ

Color difference formula:ΔE*ab, ΔL*ab, ΔE*C*H

Observation Angle: CIE 10°

Light source: D65

Light source device:LED blue light

Errors between each equipment:≤0.50 ΔE*ab

Storage:100 reference values, 20,000 samples

Repeatability:Standard deviation within ΔE*ab 0.08

Measurement conditions: average of 30 measurements of standard white plate

Power supply:Rechargeable lithium-ion battery; 3.7 V @ 3200 mAh

Charging time:8 hours

Battery life:approx. 5,000 measurements

Lamp life:5 years, more than 1.6 million measurements

Storage conditions:

Air temperature: 0 ... +40 °C

Air humidity: 0 ... 85 % RH, non-condensing

Dimensions:205 x 67 x 80 mm / 8.07 x 2.63 x 3.14 in

Weight:500 g / 17.6 in

Dilivery Contents

1 x Color meter PCE-CSM 1

1 x USB cable

1 x Lithium-ion battery

1 x AC Charger adapter

1 x Wrist band

1 x Calibration plate (white)

1 x Soft meter carry case

1 x PC software

1 x Instruction manual
