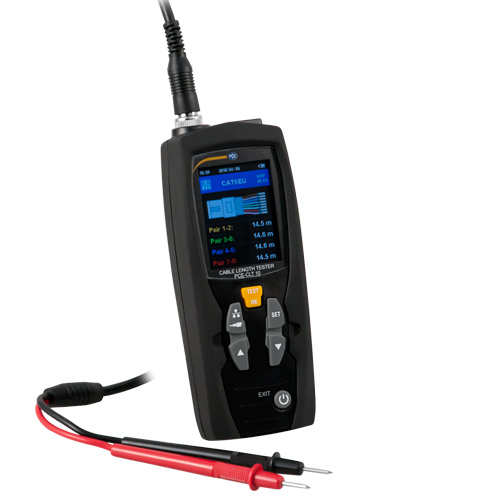

PCE CLT 10 Cable Fault Meter

Specifications

Measuring range cable length

Depending on the propagation speed of the tested cables

5 ... 3000 m / 16.4 ... 9842.5 ft with shortening factor ≤99.9%

5 ... 2400 m / 16.4 ... 7874.0 ft with shortening factor ≤80.0%

5 ... 2000 m / 16.4 ... 6561.7 ft with shortening factor ≤66.0%

5 ... 1500 m / 16.4 ... 4921.3 ft with shortening factor ≤50.0%

Measurement units:m, ft

Resolution:0.1 m

Measuring principle:Time domain reflectometer

Selection area:Automatic control range

Measurement accuracy:

± [2% of reading ± 0.2 m] <100 m

± [2% of reading ± 0.5 m] ≤100 m

Impedance selector:Automatic output of the impedance control

Shortening factor / propagation speed: Adjustable from 1.0 ... 99.9%

Cable types:20 standard cables

Memory:99 memory slots for individual cables

Connector type:BNC, RJ45

Power supply:2 x 1.5V AA battery

Battery status indicator:Yes

Automatic shutdown:Adjustable between 10 and 60 minutes

Menu languages:German, English

Operating temperatur:0 ... 40°C / 32 ... 104°F

Storage temperature:-10 ... 50°C / 14 ... 122°F

Relative humidity:0 ... 80% rel. humidity

Dilivery Contents

1 x Cable fault meter PCE-CLT 10

2 x Test leads

2 x Crocodile clip

2 x AA battery 1.5V

1 x Transport bag

1 x User manual
