PCE 830-1-ICA Three Phase Power Analyzer

Specification

Measurement values:Measurement ranges / resolution / accuracy

PCE-830 + PCE-6801

Watts AC (50 or 60Hz, PF 0.5 up to 1):

5.0 to 999.9W / 0.1W / ±1% ±0.8W

1.000 to 9.999kW / 0.001kW / ±1% ±8W

10.00 to 99.99kW / 0.01kW / ±1% ±80W

100.0 to 999.9kW / 0.1kW / ±1% ±0.8kW

1000 to 9999kW / 1kW / ±1% ±8kW

PCE-830 + PCE-6801

Current AC (50 or 60Hz, auto range select, TRMS):

0.04A to 1A / 0.001A / ±0.5% ±0.05A

0.4A to 10.0A / 0.01A / ±0.5% ±0.05A

4A to 100.0A / 0.1A / ±1.0% ±0.5A

Voltage AC (50 or 60Hz, TRMS):

20.0 to 500.0V / 0.1V / ±0.5% ±5 digits

(measure between phase and neutral)

20.0 to 600.0V / 0.1V / ±0.5% ±5 digits

(measure between phase and neutral)

Harmonic distortion of AC voltage:

1 to 20º / 0.1% / ±1.0%

21 to 49º / 0.1% / 4% of reading ±2.0%

50 to 99º / 0.1% / 6% of reading ±2.0%

PCE-830 + PCE-6801

Harmonics of AC current in %:

1 to 20º / 0.1% / ±0.2% of reading ±1.0%

11 to 20º / 0.1% / ±2% of reading ±1.0%

21 to 50º (A)/ 0.1% / ±5% of reading ±1.0%

21 to 50º (mA)/ 0.1% / ±10% of reading ±1.0%

51 to 99º / 0.1% / ±35% of reading ±1.0%

PCE-830 + PCE6801

Power Factor (PF):0.00 to 1.00 / 0.01 / ±0.04

PCE-830 + PCE6801

Phase angle (Phi):-180° to 180° / 0.1° / ±1°

PCE-830 + PCE-6801

Total harmonic distortion:

0.0 to 20.0% / 0.1% / ±1%

20.0 to 100% / 0.1% / ±3% of reading ±5%

100 to 999.9% / 0.1% / ±10% of reading ±10%

Maximum measurement of AC voltage and current:50Hz / 19µS / ±5% ±30 digits

60Hz / 16µS / ±5% ±30 digits

Peak value measurement of AC voltage and current:1.00 to 99.99 / 0.01 / ±5% ±30 digits

Frequency range in automatic mode:45 to 65Hz / 0.1Hz / 0.1Hz

Memory512kB for a maximum 52,420 readings taken by 1 phase / 2 conductors

Port:USB

Software and cable:included, for Windows 2000, XP, ME

Display:backlit LCD with dot matrix

Power:8 AA batteries(Mignon)

Dimensions:257 x 155 x 57mm / 10.1 x 6.1 x 2.2 in

Weight:1160g / 40.9 oz

Operating conditions:max. 85% relative humidity / -10 ... 50ºC / 14 ... 122 °F

Type of protection / standards:IEC 61010, 600 V/CAT III

Delivery contents

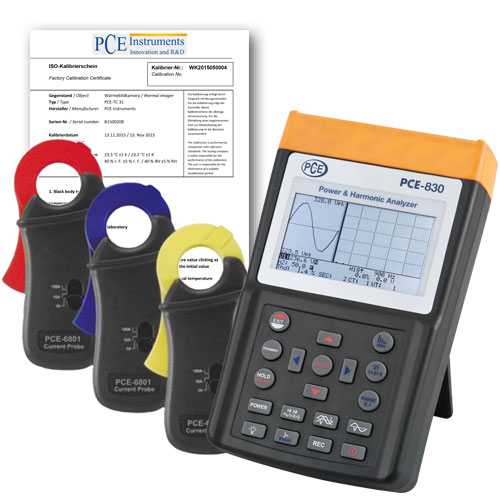

1 x PCE-830 power analyser

3 x Amp clamps - PCE-6801

4 x Alligator clips

4 x Safety test lines (3m long),

8 x Batteries

1 x Mains adaptor

1 x Carrying case

1 x USB cablem software

1 x User's manual

1 x ISO calibration certificate
