PCE 360-ICA Power Analyzer (50.0~600.0 V; 3.0~999.9 A True RMS)

Specification

AC voltage

Measuring range: 50 V ... 600.0 V True RMS value

Resolution: 0.1 V

Accuracy: ± 1.5% of measured value ± 10 digits

AC current

Measuring range: 3 A ... 999.9 A True RMS value

Resolution: 0.1 A

Accuracy (incl. current clamp): ± 1.5% of measured value ± 15 digits

Active power

Measuring range: 150 W ... 999.9 kW

Resolution: 0.1 kW

Accuracy: ± 1.5% of measured value ± 20 digits

Apparent power

Measuring range: 150 VA ... 999.9 kVA

Resolution: 0.1 kVA

Accuracy: ± 1.5% of measured value ± 20 digits

Reactive power

Measuring range: 150 Var ... 999.9 kVar

Resolution: 0.1 kVar

Accuracy: ± 1.5% of measured value ± 20 digits

Power factor (cos Φ)

Measuring range: 0 ... +1

Resolution: 0.001

Accuracy: ± 0.06

Phase angle (Φ)

Measuring range: -90° ... + 90°

Resolution: 0.1°

Accuracy: ± 3°

Frequency (U < 50 V)

Measuring range: 40 Hz ... 100 Hz

Resolution: 0.1 Hz

Accuracy: ± 0.1% of measured value +2 digits

Rotary field (UL > 50 V)

Input voltage range: 3P > 10 V

Measurement sources: U1, U2 and U3

Active energy

Measuring range / resolution: 0 ... 9999 MWh

Accuracy: ± 1.5% of measured value +20 digits

Apparent energy

Measuring range / resolution: 0 ... 9999 MVAh

Accuracy: ± 1.5% of measured value +20 digits

Reactive energy

Measuring range / resolution: 0 ... 9999 MVArh

Accuracy: ± 1.5% of measured value +20 digits

Harmonics

Order: 1 ... 63

Accuracy: ± 3% THD

Waveforms: Display via PC software

General specifications

Sampling rate: 1 / second

Max. current clamp opening: 44 mm / 1.73 in

Max. data storage:

Manual: 50 measurements

Data logger: 99 sets of 350,000 measurements

Data interface

Software:

RS-232 port to USB cable

CD-ROM for PC, Windows-compatible

Display: 4-digit LCD

Power supply: 8 x 1.5 V AA batteries or 12 V, 300 mA

Device dimensions

Device weight (incl. batteries): Approx. 235 mm x 117 mm x 54 mm / 9.25 in x 4.61 in x 2.13 in; Approx. 730 g / 1.61 lbs

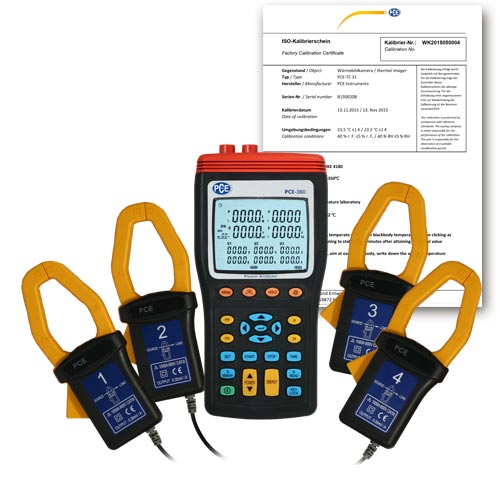

Delivery contents

1 x PCE-360 Power Analyzer

4 x Current clamps

4 x Measuring leads

4 x Alligator clips

8 x 1.5 V AA batteries

1 x Power adapter

1 x USB cable

1 x PC software CD-ROM

1 x User manual

1 x Carrying case

1 x ISO Calibration Certificate
