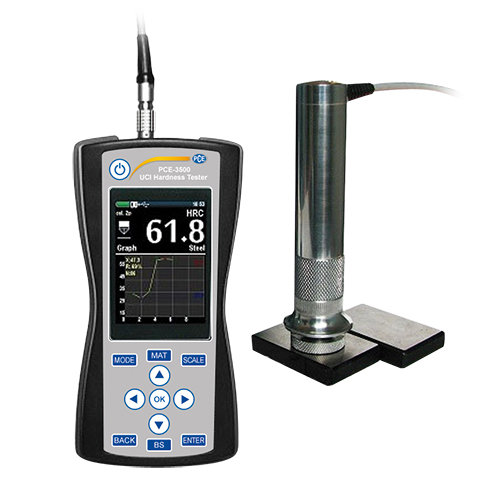

PCE 3500-10 Hardness Tester

Specification

Measurement range:

230 ... 940 HV

20 ... 70 HRC

90 ... 650 HB

370 ... 1740 MPa

Accuracy:

+/- 3 % HV

+/- 1,5 HRC

+/- 3 % HB

Probes:50 N UCI probe (10 N UCI probe optional)

Hardness scales:HRC, HB, HV, HRB, HL, MPA

Materials:UCI: steel (ferromagnetic)

Reference block:136 ° Vickers diamond

Measurement direction:360 °

Minimum material thickness:1 mm (with UCI probe only)

Display:graphical colour LCD with backlight

Functions:Single measurement, MIN / MAX / average value, number of measurements, mean value, standard deviation, variation coefficient, bar chart, Smart Mode (filters outliers)

Memory:SD card

Interface:USB

Operating conditions:-20 ... +40 °C; 30 ... 80 % RH

Power supply:6 V (3 x AA batteries)

Battery life:approx. 10 hours

Dimensions:160 x 75 x 30 mm

Protection class:IP 54

Weight:300 g (without probe)

Delivery contents

1 x UCI hardness tester PCE-3500

1 x 50 N UCI probe

1 x 2 GB SD card

1 x USB cable

1 x PC software

1 x instruction manual
