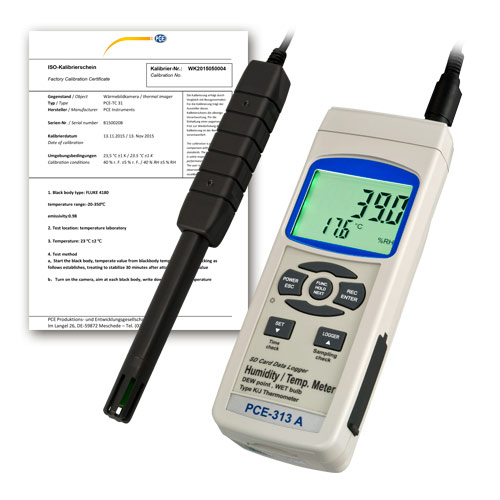

PCE 313A-ICA Humidity/Temp Data Logger

Specification

Ranges

- Relative humidity:5 ... 95% RH

- Temperature:0 ... 50°C / 32 ... 122°F

- Type K:-50 ... 1300ºC / -58 ... 2372°F

- Calculated dew point:-25.3 ... 48.9ºC / -13.5 ... 120°F

- Wet bulb temperature :-21.6 ... 50ºC / -6.9 ... 122°F

Resolution

- Relative humidity:0.1% RH

- Temperature:0.1°C / 0.18°F

- Type K:0.1°C / 0.18°F

- Calculated dew point:0.1°C / 0.18°F

- Wet bulb temperature: 0.1°C / 0.18°F

Accuracy

- Temperature:±0.8ºC / 1.4ºF

- Relative humidity:≥70% RH±3% of the measurement value ±1% RH

<70% RH±3% RH

- Type K:± (0.4% + 0.5ºC / 32.9ºF)

Memory:SD card (1 ... 16 GB)

Measurement rate:Adjustable, 1 ... 3600 seconds

Display:LCD 52 x 38 mm / 2 x 1.5 in, with backlight

Interface:RS-232

Operating conditions:0 ... 50°C / 32 ... 122ºF

< 85% RH

Power supply: 6 x 1.5V batteries / 9V mains adapter (optional)

Dimensions:177 x 68 x 45 mm / 7 x 2.7 x 1.8 in

Weight:Approx. 490 g / 1.1 lbs

Delivery contents

1 x Relative Humidity Meter PCE-313A

1 x Sensor for temperature and humidity

1 x SD card (2 GB)

6 x Batteries

1 x Manual

1 x ISO Calibration Certificate
