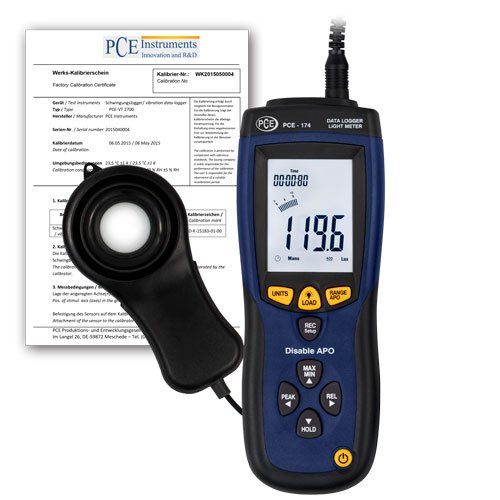

PCE 174-ICA Illuminometer (4000lux)

Specification

Ranges

40.0 / 400.0 / 4000 / lux

40.00 / 400.0 klux

40.00 / 400.0 / 4000 / fc

40.00 kfc

Resolution

0.01 / 0.1 / 1 / 10 / 100 Lux

0.01 / 0.1 / 1 / 10 FootCandle

Accuracy

± 5% of reading ± 10 digits (<10,000 lux)

± 10% of reading ± 10 digits (>10,000 lux)

Repeatability: ± 3%

Memory: 16.000 readings

Rate of measurement: Between 2 seconds and 9 hours

Overload indicator: OL = Overload

Screen refresh rate: 1.5 per second

Operating conditions: 0 ... 40ºC / 32 ... 104°F, 80% r.h.

Display: 3¾ digit LCD

Power: 9V battery

Dimensions

Device: 203 x 75 x 50 mm / 7.9 x 2.9 x 1.9 in

(width x height x depth)

Light sensor: 115 x 60 x 20 mm / 4.5 x 2.3 x 0.7 in

(width x height x depth)

Cable length: 150 cm

Weight: 280g / < 1 lb

Standards

Safety: IEC-1010-1; EN 61010-1

EMV: EN 50081-1; EN 50082-1 corresponding with DIN 5031; DIN 5032

Delivery contents

1 x PCE-174 Illuminometer

1 x Light sensor

1 x Software

1 x USB cable

1 x Battery

1 x Carrying case

1 x User's manual

1 x ISO calibration certificate
