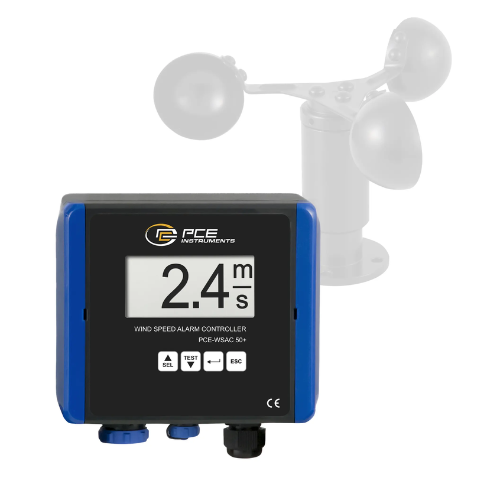

PCE WSAC 50+24 Wind speed meter (0~50m/s)

Specification

Speed

Measurement range from: 0 m/s

Measurement range up to: 50 m/s

Resolution: 0.1 m/s

Accuracy: ±0.3 m/s v.Mb.

General technical data

Inputs: 4 ... 20 mA, Pulse

Outputs: 4 ... 20 mA, max. 250 V AC, 8 A, 15 V DC

Units: m/s, km/h, mph

Display type: LCD

Display size: 3 Inch

Display resolution: 128 x 64 pixels

Storage medium: Micro SD card, Internal memory

Storage capacity: 30000 Data records

Memory capacity (additional information):

External memory: max. capacity 32 GB (8 GB SD card included)

Storage interval from: 10 s

Storage interval to: 1 h

Interface: RS485

Sensor supply: 12 ... 24 V DC / max. 150 mA

Protection class (device): IP65

Power supply: Display: 24 V DC

Weight: 570 g

Operating condition:s -20 ... 70 °C , 0 ... 95 % r.F

Storage conditions: -35 ... 70 °C , 0 ... 95 % r.F

Dimensions ( L x W x H ): 150 x 160 x 93 mm

Delivery Scope

1 x Wind Measurer PCE-WSAC 50+ 24

1 x 8 GB microSD card

1 x user manual

1 x sensor plug

Note: Wind sensor not included! This must be ordered separately!
