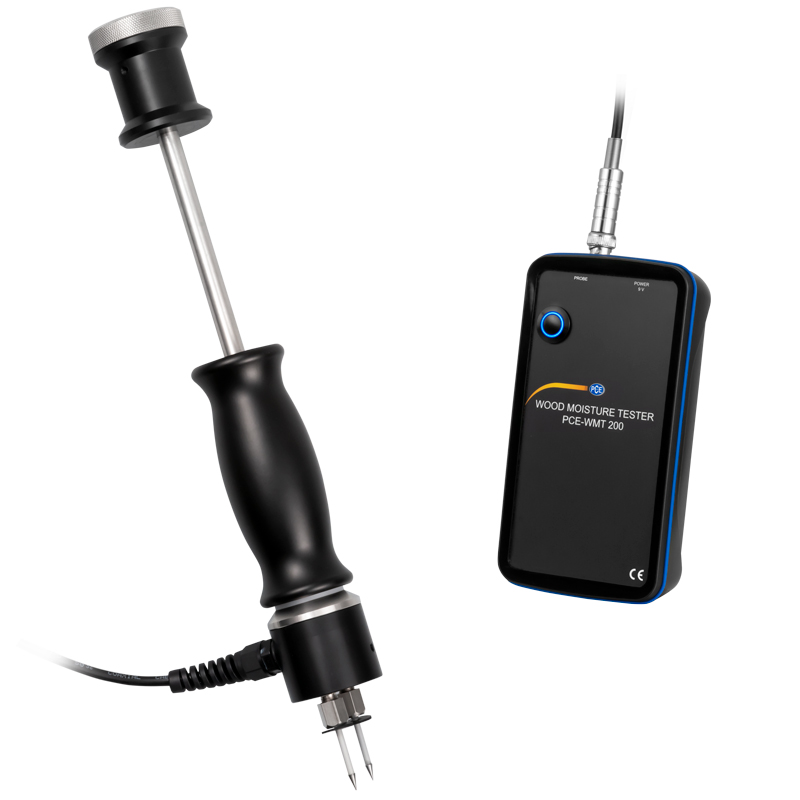

PCE WMT 200 Moisture Meter (6.1~150%)

Material

-Hardwoods/ Measuring range:

Maple: 7.9 ... 150%

American birch: 6.4 ... 150%

Basla: 7.3 ... 150%

Sycamore maple: 7.9 ... 150%

Birch: 8.1 ... 150%

Beech: 7.2 ... 150%

Real mahogany: 6.7 ... 150%

Sweet chestnut: 8.1 ... 150%

Alder: 8.1 ... 150%

Ash: 8.1 ... 150%

False acacia: 8.1 ... 150%

Yellow birch: 6.4 ... 150%

Hornbeam: 8.1 ... 150%

European hornbeam: 8.1 ... 150%

Canadian birch: 8.1 ... 150%

Cherry tree: 8.1 ... 150%

Walnut: 8.1 ... 150%

Poplar: 6.8 ... 150%

Plum tree: 8.1 ... 150%

Plane: 7.1 ... 150%

Black locust: 8.1 ... 150%

European beech: 7.2 ... 150%

Black alder: 8.1 ... 150%

Sipo: 9.7 ... 150%

Stone beech: 8.1 ... 150%

English oak: 7.0 ... 150%

Teak: 6.8 ... 150%

Sessile oak: 7.0 ... 150%

Elm: 8.0 ... 150%

Willow: 6.1 ... 150%

White maple: 7.9 ... 150%

White birch: 8.1 ... 150%

White beech: 8.1 ... 150%

Sugar birch: 8.1 ... 150%

Damson plum: 8.1 ... 150%

-Softwoods:

Douglas fir: 6.6 ... 150%

Spruce, common: 8.1 ... 150%

Pine: 6.6 ... 150%

Larch: 7.5 ... 150%

Central European spruce8.1 ... 150%

Scandinavian spruce: 8.1 ... 150%

Fir: 8.5 ... 150%

Cypress: 6.7 ... 150%

The moisture content is based on the dry matter at a temperature of 20°C / 68°F

More building materials

Building moisture (digit display): 11 ... 200 digits

Wood fiber insulation board: 6.8 ... 150%

Chipboard: 3.5 ... 150%

Further specifications:

Resolution: 0.1%

Resolution digit display1

Repeatability: ± 0.5%

Temperature compensation: -20 ... 50°C / -4 ... 122°F, manual / automatic

Measuring principle: Electrical resistance measurement

Sensor type: Ram electrode

Pairs of needles maximum penetration depth: 45 x Ø3.05 mm: 30 mm; 165 x Ø2.85 mm: 150 mm

Protection class: IP 52

Power supply: 9V block battery / 9V DC, 1 A mains connection

Interface: Bluetooth 4.0

Cable length: Approx. 1 m / 39.4 in

Power consumption: Max. 1 A

Dimensions:

Ram electrode: 332 x Ø45 mm / 13.1 x Ø1.8 in

Measuring device: 175 x 90 x 35 mm / 6.9 x 3.5 x 1.4 in

Pair of needles: 45 x Ø3.05 mm / 1.8 x Ø0.1 in

165 x Ø2.85 mm / 6.5 x Ø0.1 in

Weight: Ram electrode: 1677 g / 3.7 lbs; Measuring device: 250 g / 0.6 lbs

Delivery Scope:

1 x Bluetooth moisture meter PCE-WMT 200

1 x Pair of needles 165 x Ø2.85 mm / 6.5 x Ø0.1 in

2 x Pair of needles 45 x Ø3.05 mm / 1.8 x Ø0.1 in

1 x Pair of isolators

1 x Power supply

1 x 9V block battery

1 x Transport case

1 x Quick start guide
