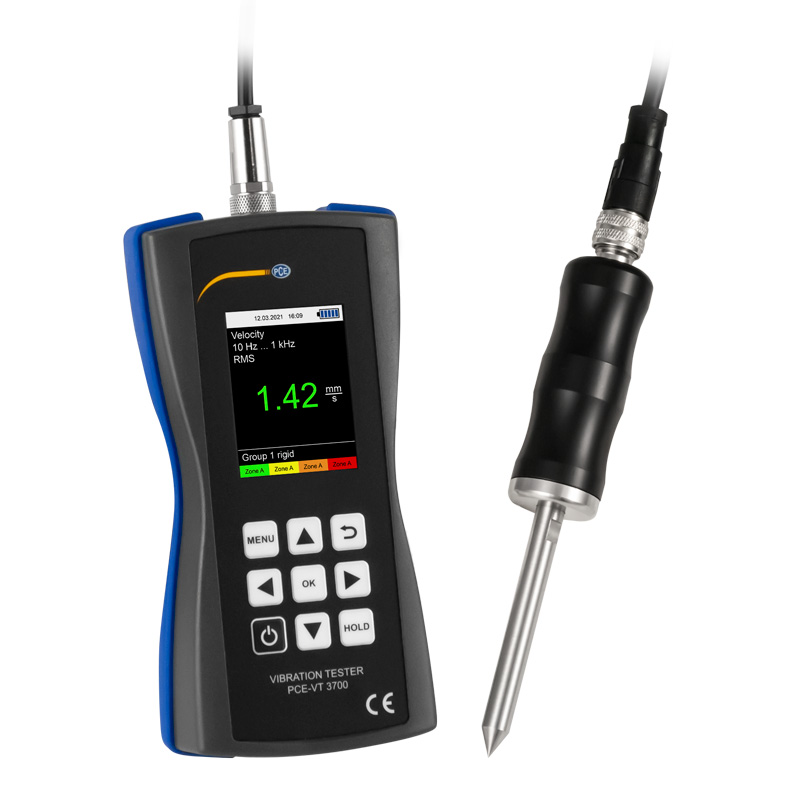

PCE VT 3700S Vibration Meter

Measuring range:

Acceleration: 0.0 ... 399.9 m/s²

Resolution: 0.1 m/s²

Accuracy @ 160 Hz±2 %

Frequency range:

10 Hz ... 1 kHz

10 Hz ... 10 kHz

Measuring range:

Velocity: 0.00 ... 399.9 mm/s

Resolution: 0.1 mm/s

Accuracy @ 160 Hz±2 %

Frequency range: 10 Hz ... 1 kHz

Measuring range:

Displacement: 0.000 ... 3.9 mm

Resolution: 1 µm

Accuracy @ 160 Hz±2 %

Frequency range: 10 Hz ... 200 Hz

Measurement parameters: RMS, Peak, Peak-Peak, Crest factor

Units: switchable metric / imperial

Display: 3.5" LC display

Menu languages:

English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese

Power supply: 3 x 1.5 V AA batteries

Operating and storage conditions: -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H.

Dimensions: 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5"

Weight: 170 g / 6 oz

Technical Data Vibration Sensor

Resonance frequency: 30 kHz

Transverse sensitivity: ≤ 5%

Destruction limit: 5000 g (peak)

Operating and storage temperature: -20 ... +80 °C / -4 ... 176 °F; max. 95 % r.H.

Housing material: Stainless steel

Mounting thread: M5

Dimensions: 16 x 36 mm / 0.6 x 1.4"

Weight (without cable): 35 g / 1.2 oz
